You will need to disconnect the intercooler piping from the throttle body &

then remove the throttle body....its (4) 12mm bolts & nuts, pretty simple to get off....



Next you will need to remove the intake manifold....

its (6) or (7) 12mm nuts & bolts, its a big pain in the ass,

just take your time, you will also need to disconnect the

aluminum egr hose - the 12mm nut behind the hose is the

hardest to get to....Refer to the manual for help...:)

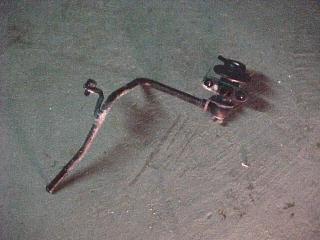

Remove the stock FPR (fuel pressure regulator) - its located at then

end of the rail, closest to the front of the car...
