TECHTOM
MDM-100
MULTI DISPLAY MONITOR

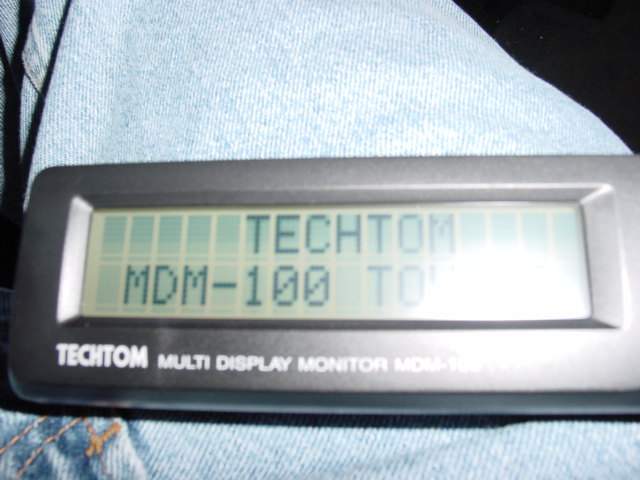

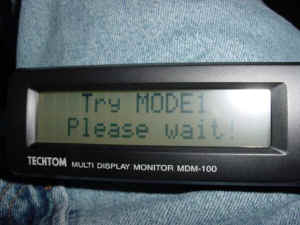

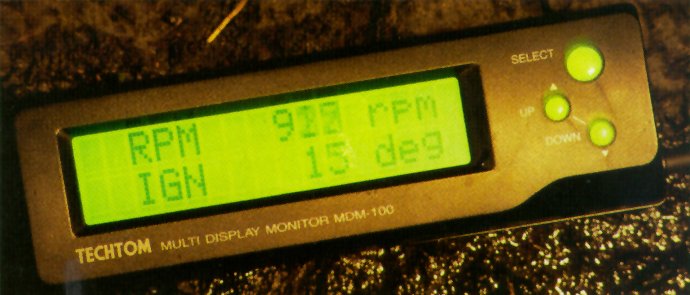

For Toyota OBD1
Cars







www.technosquareinc.com

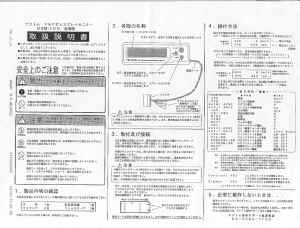

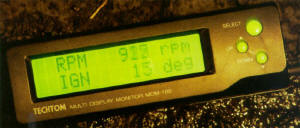

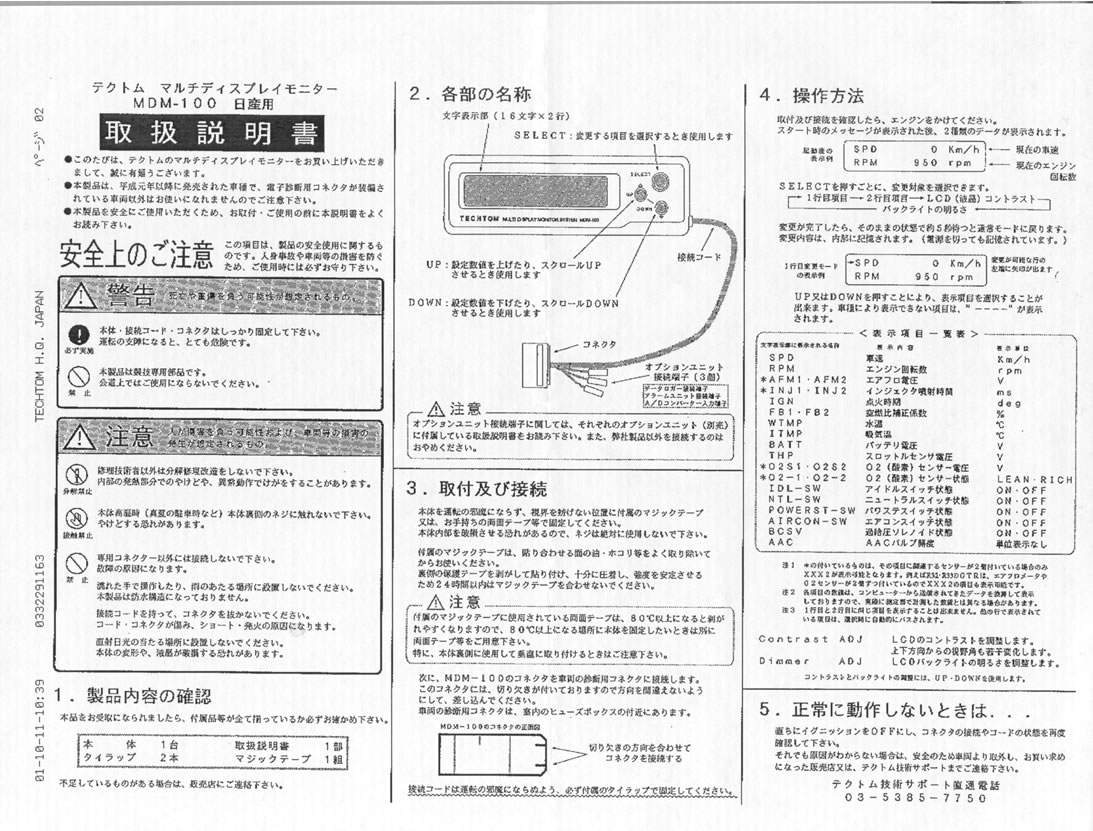

DISPLAY STANDS FOR EXPLANATION
INJ 00.00 ms Injector Duty Time
Duty 0.0 % Injector Duty Percentage
IGT 000 deg Ignition Timing Degree
RPM 0000 rpm Engine Speed RPM
SPD 000 kmh Speed Kmh
SPD 000 mph Speed Mph
WTMP 00 c Water Temp Celsius
WTMP 00 f Water Temp Fahrenheit
THP 0.0 deg Throttle Position Degree
ISCS 000 STEP Idle Regulator Valve Steps
ISCS 00.0 % Idle Regulator Valve
Percentage

PIMt 0.0 kpa Intake Manifold Pressure
Turbo

PIMn 0.0 kpa Intake Manifold Pressure Non-turbo
AFMv 0.00 v Air Flow Meter Signal Voltage
AFMg 0.00 g/s Hot Wire Output g/s
  Karmen Output Time
STA-up  on/off Cold Start On / Off
WARM-up
on/off
Warm up On / Off
A/F-L  on/off A/F Adjustment Control On
/ Off

A/F-R  on/off A/F Adjustment Control On
/ Off

KNOCK  on/off Knock Sensor On / Off
STA-sw  on/off Starter Switch Position On
/ Off

IDL-sw  on/off Idle Switch Position On
/ Off

A/C-sw  on/off Air Conditioning On
/
Off

NTL-sw  on/off Neutral On > Off
O2-R
lean/rich
O2 Sensor LEAN / RICH
O2-L
lean/rich
O2 Sensor LEAN / RICH

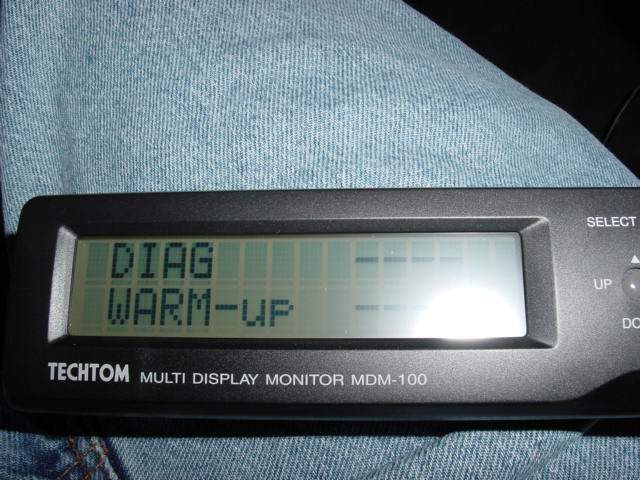

DIAG  NG/OK Diagnostic Condition OK
/ NG


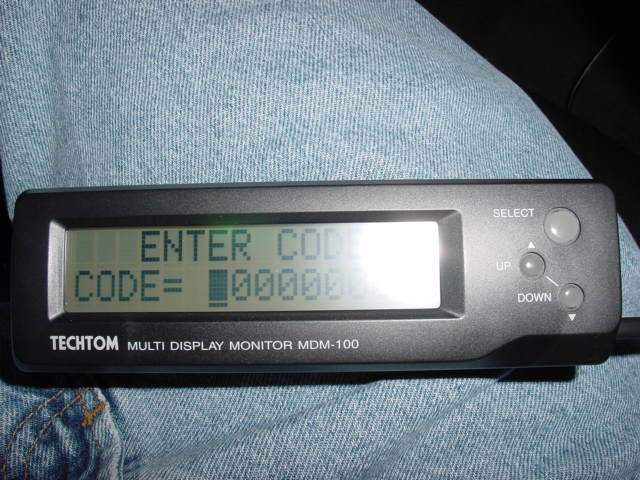

MAJOR PARAMETERS Simply
access these major parameters with the simple 3-button control.


FEATURES
Easy connection – plugs into ROUND diagnostic port under
dash drivers side
16-bit CPU for high-performance processing
Heat resistant ABS plastic case
Industrial grade LCD screen with back lighting
Special heat resistant cable
Electronic control of LCD brightness and contrast
Nonvolatile memory – no need for backup battery
3-button control for ease of use











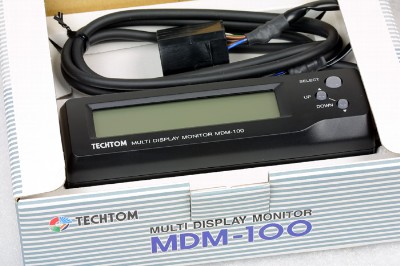

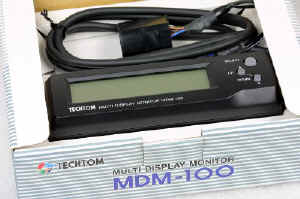

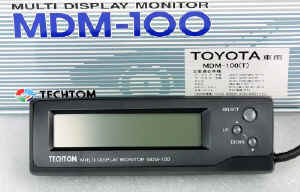

Normal Finish

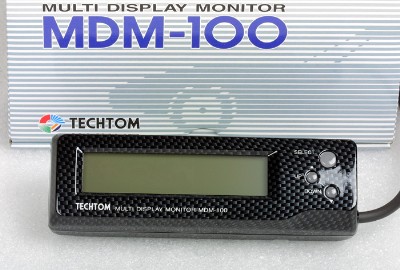

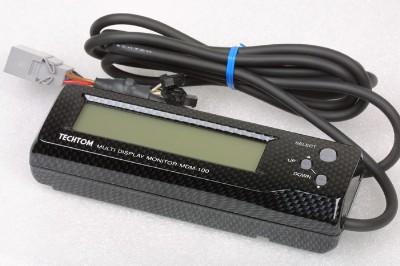

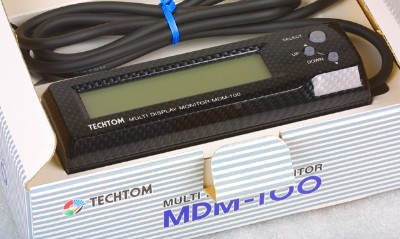

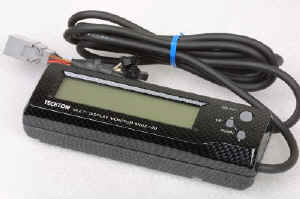

Carbon Fiber Finish









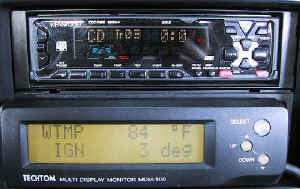

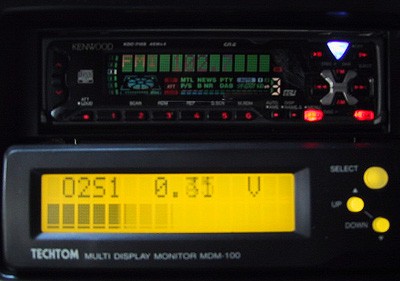

1 Din Size
