Brake Master

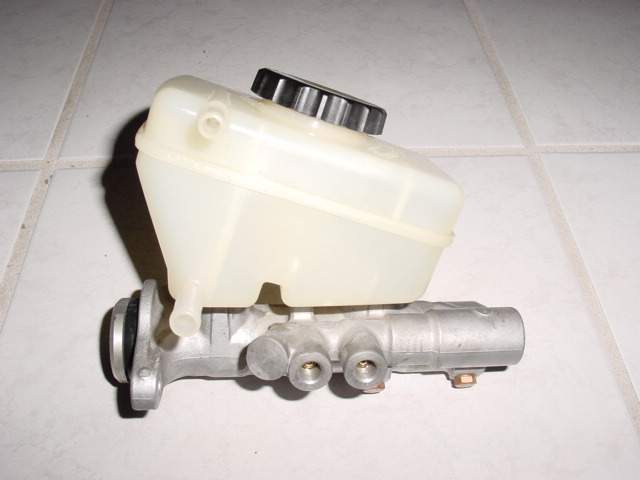

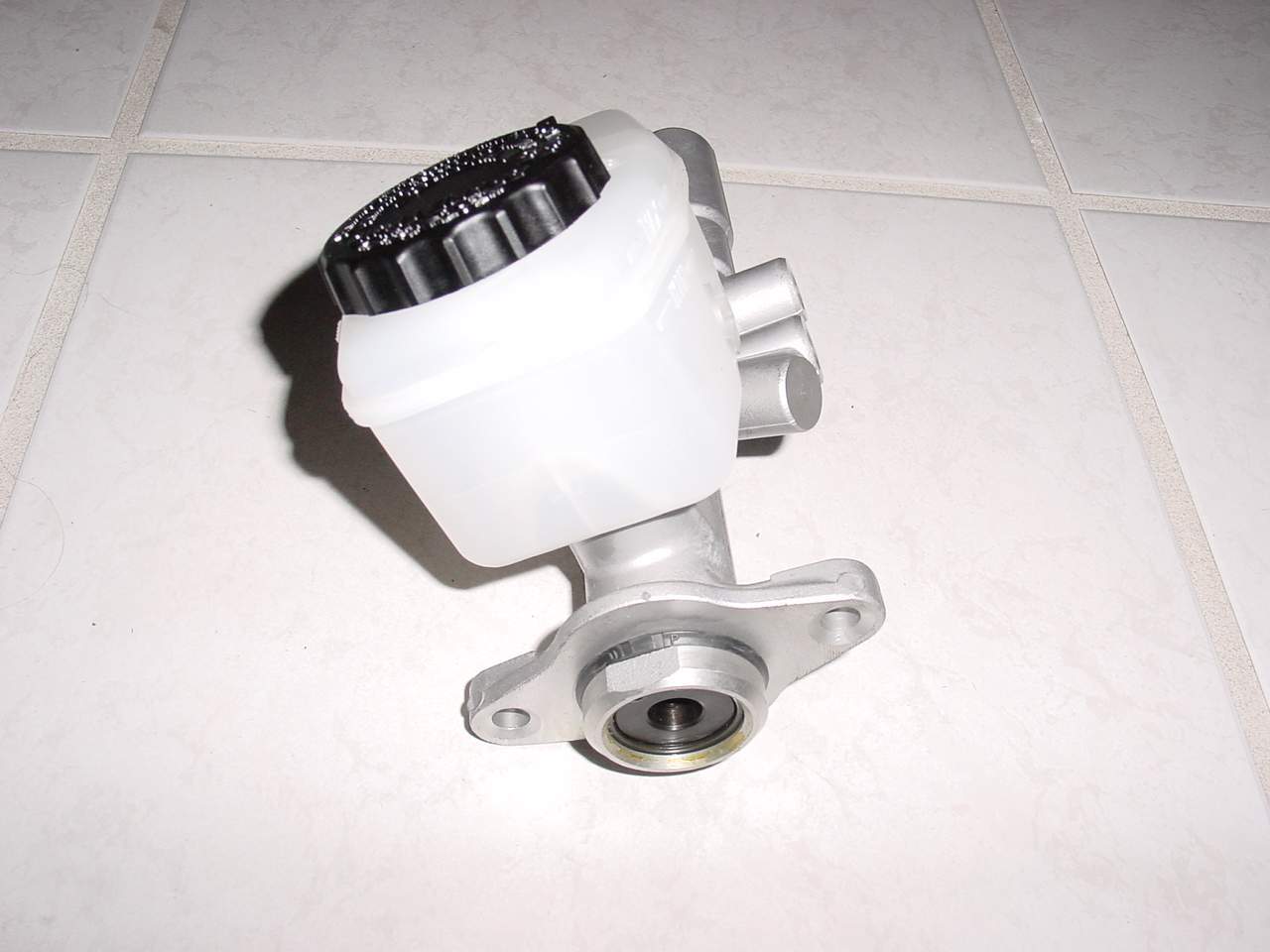

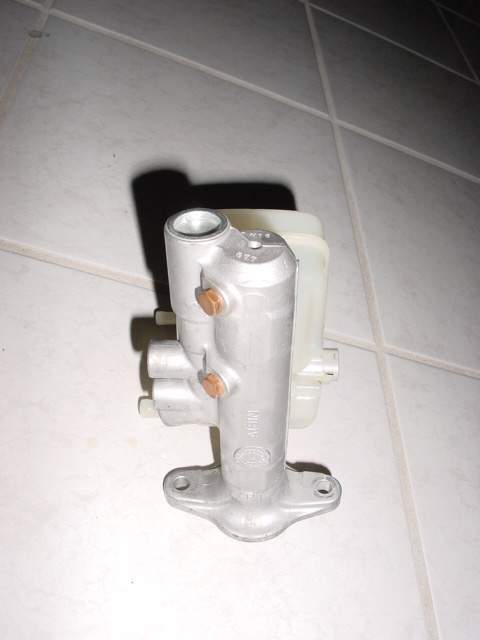

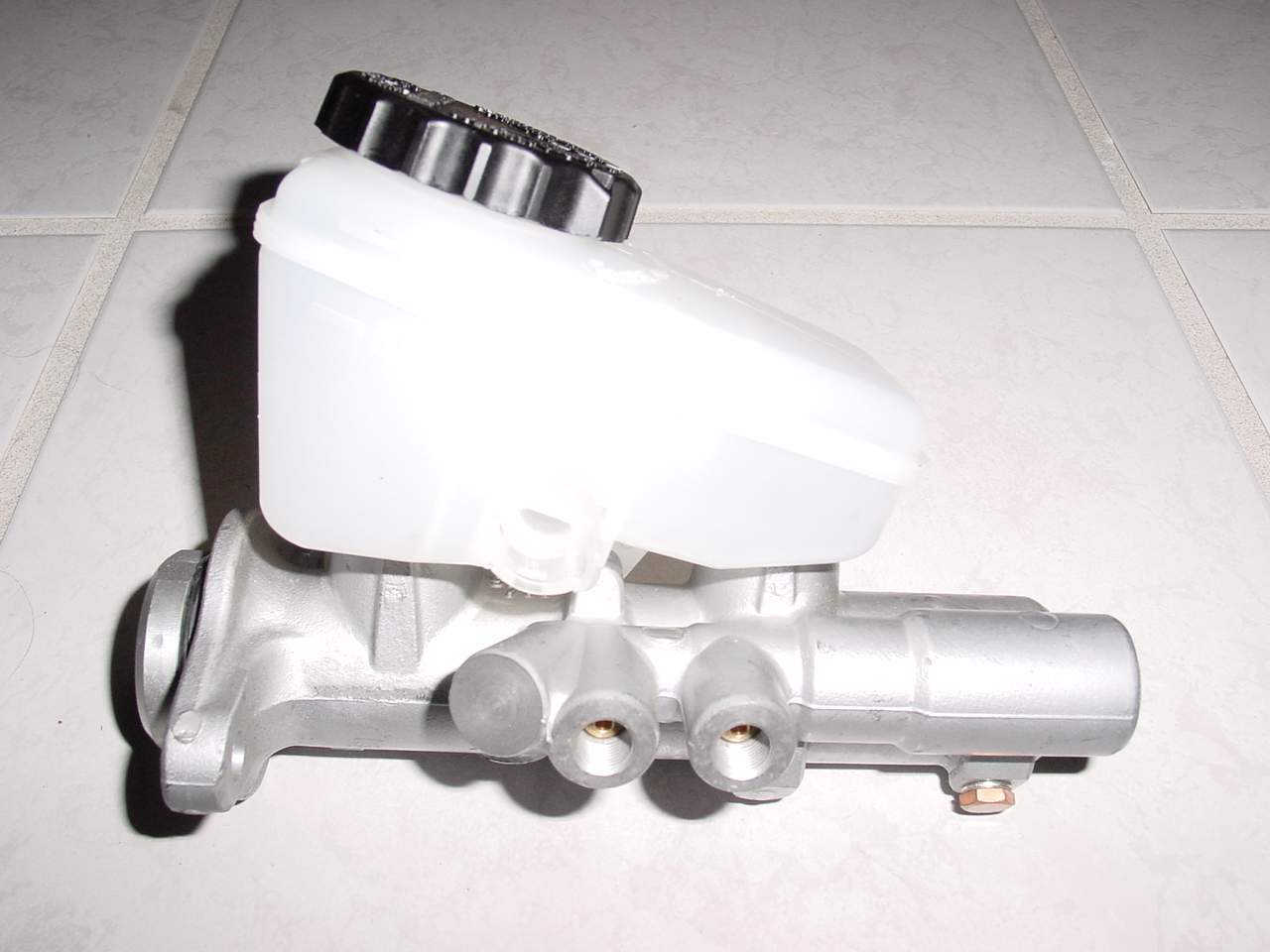

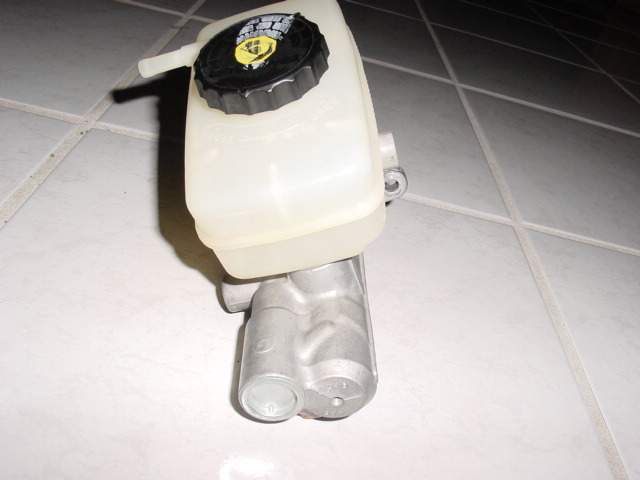

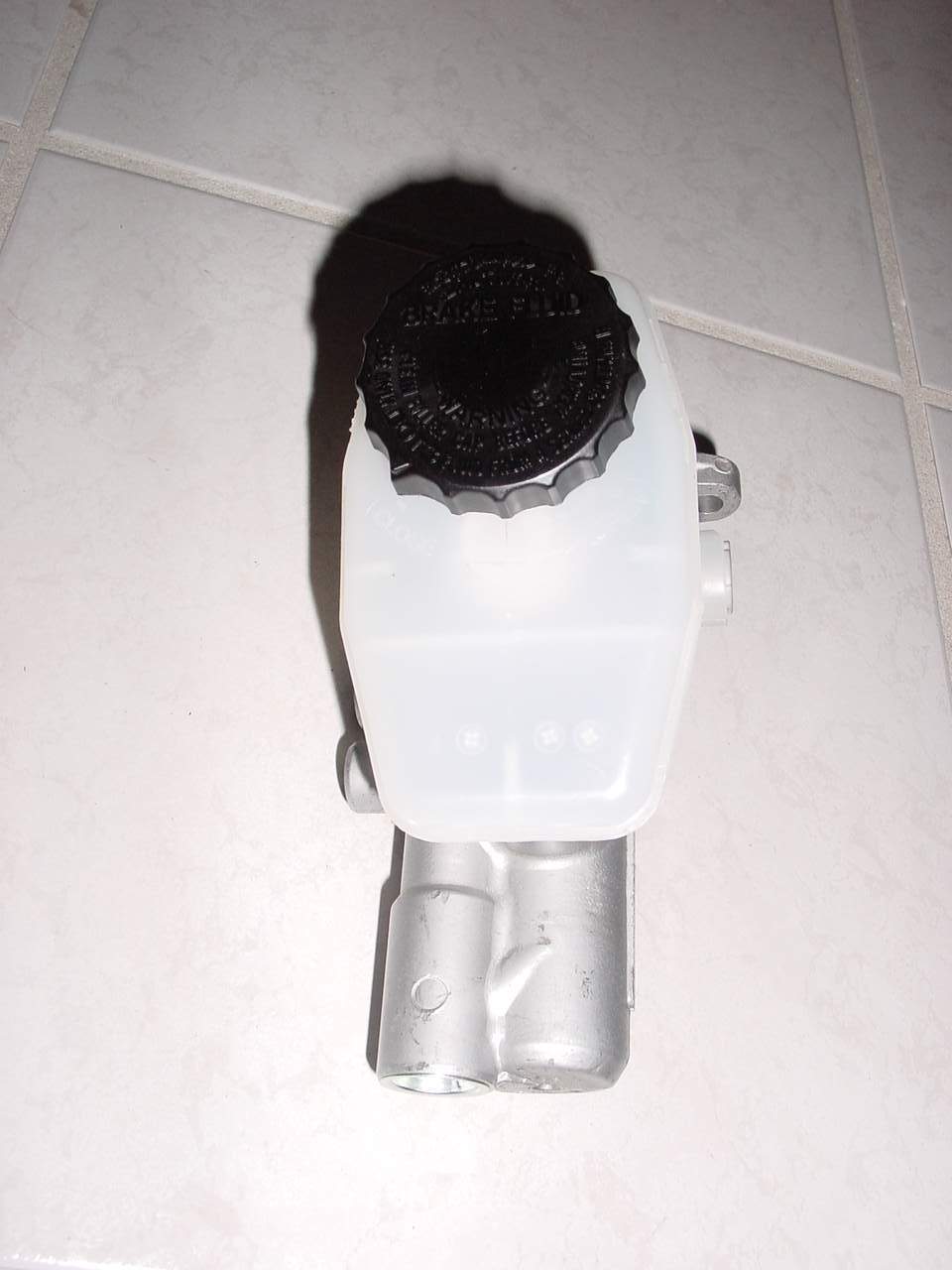

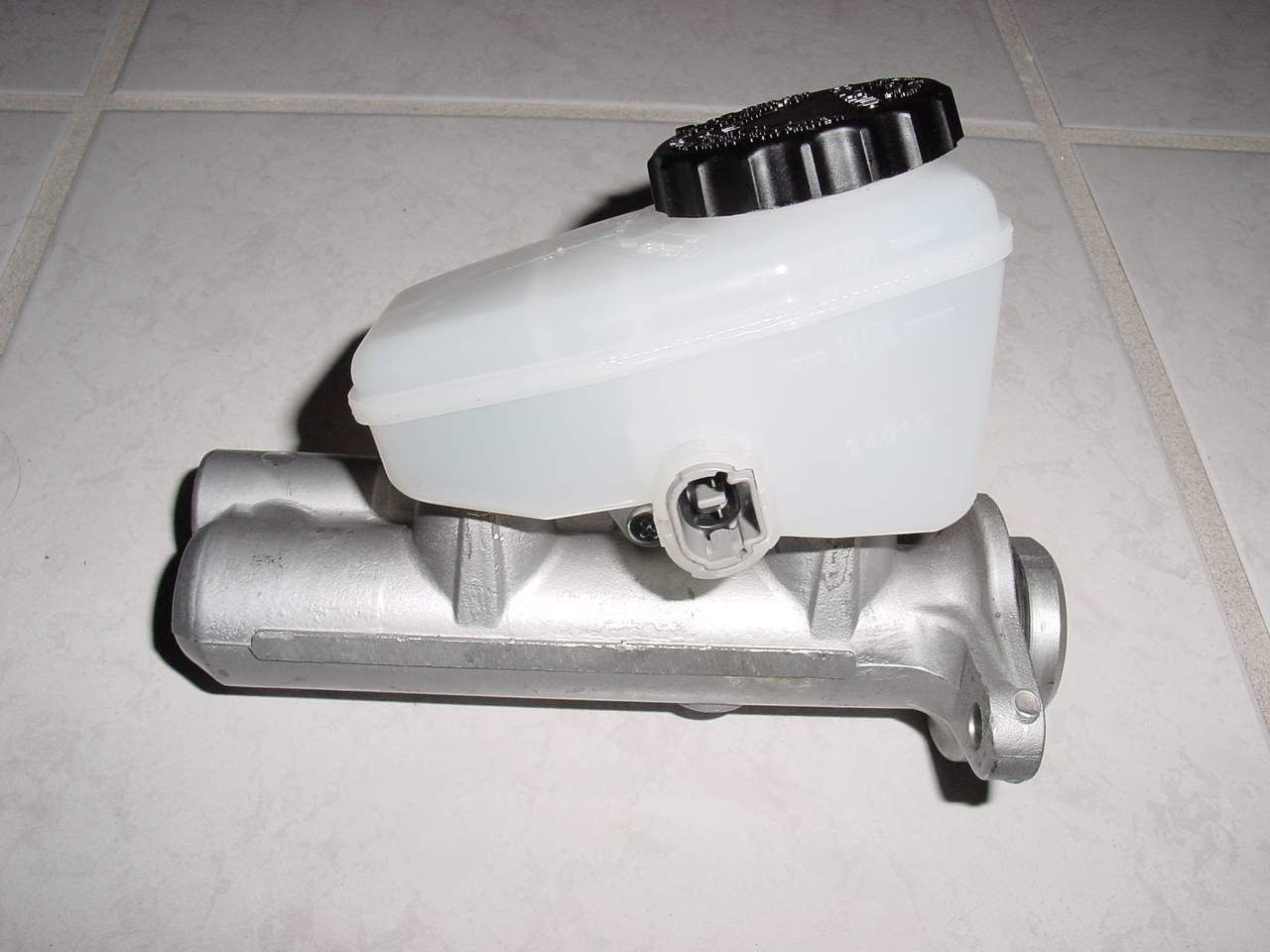

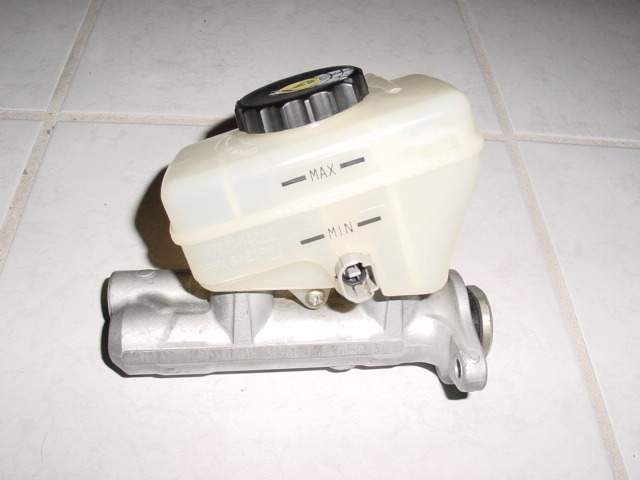

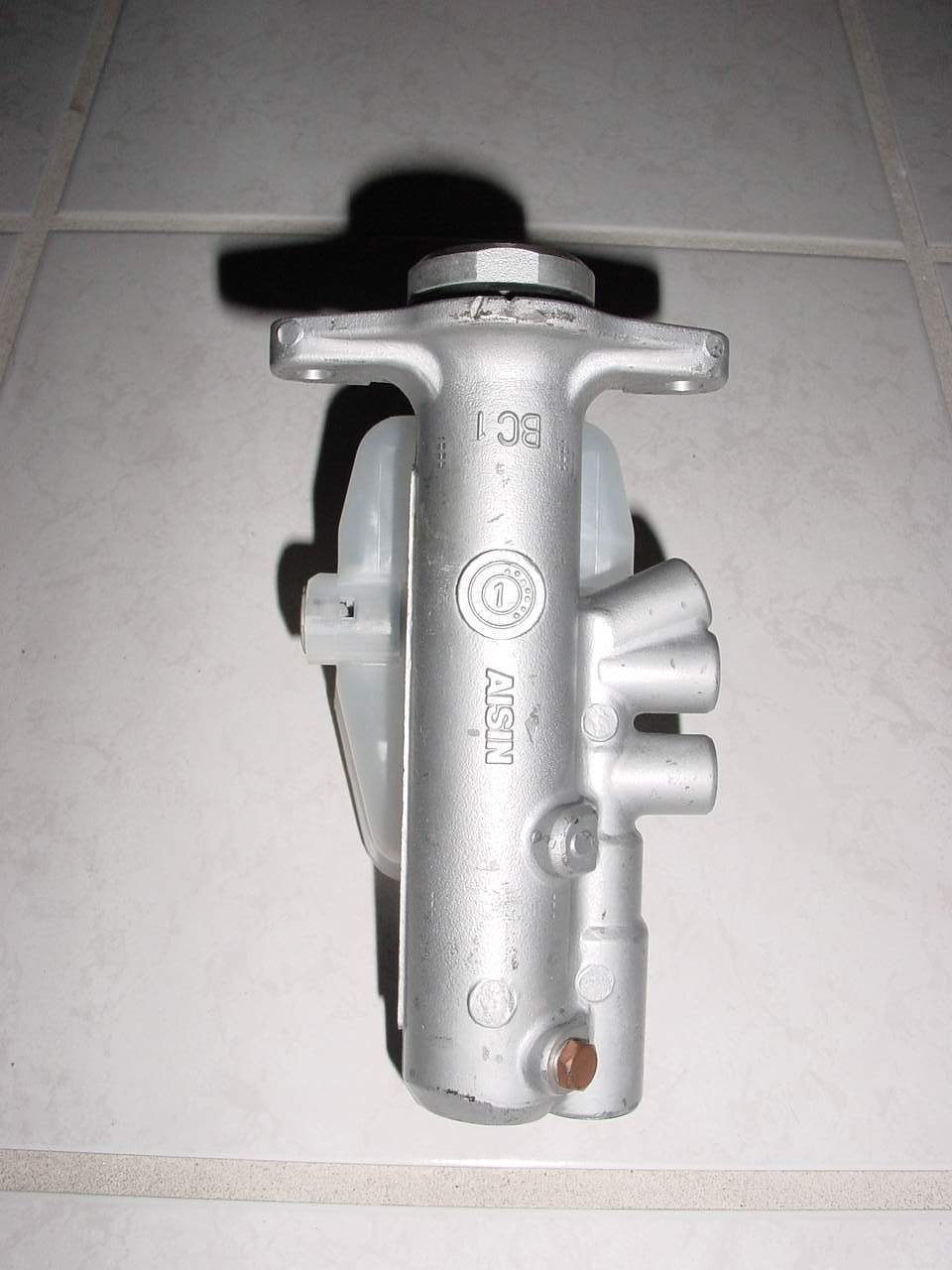

1997-1998 brake master(new)

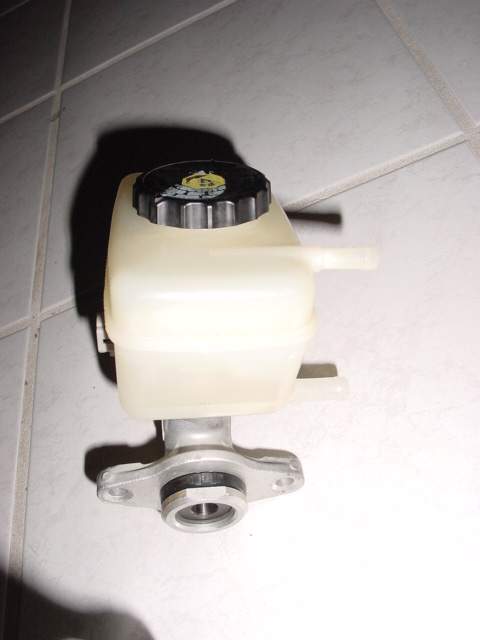

1993-1996 brake master(used)

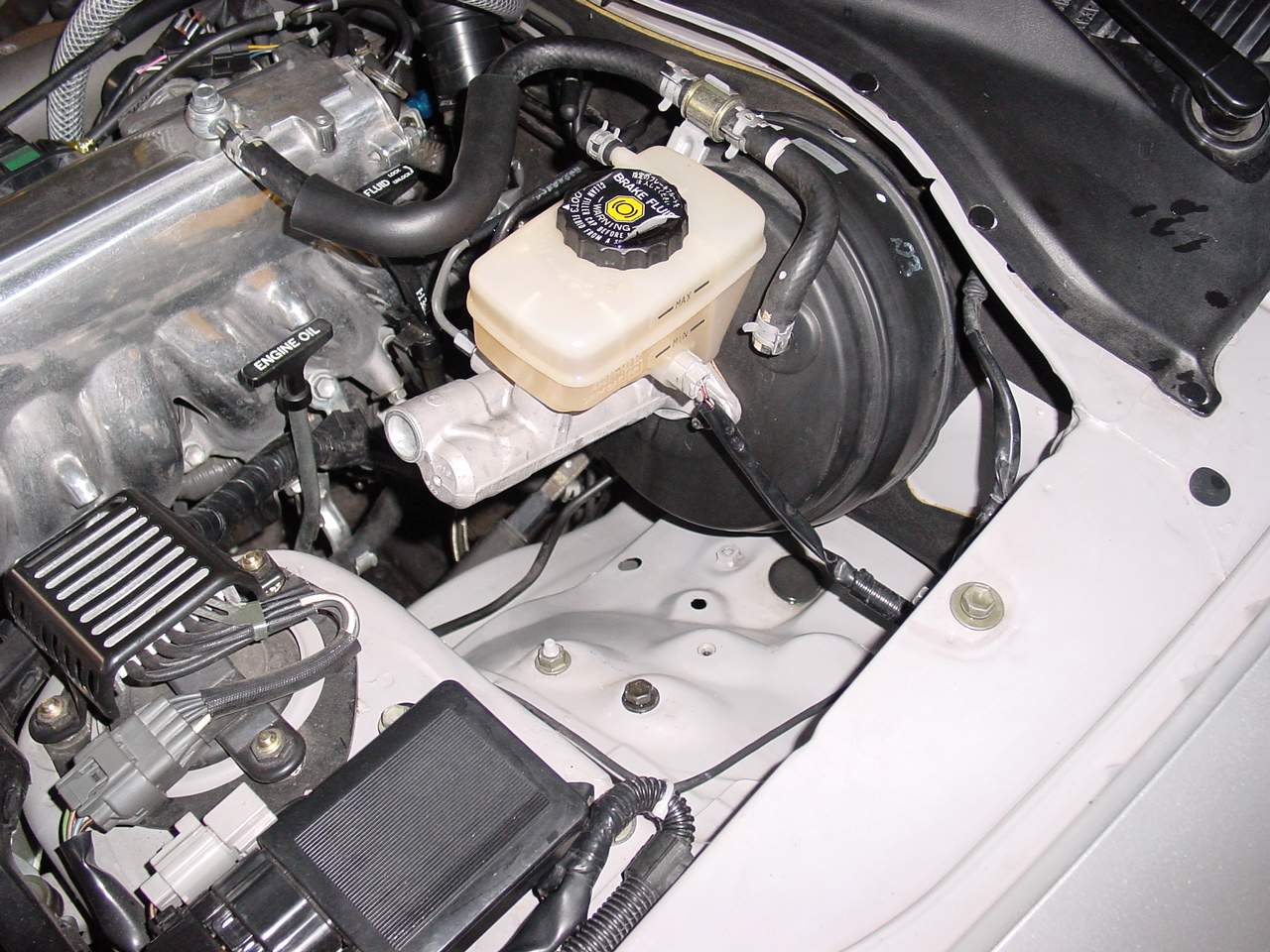

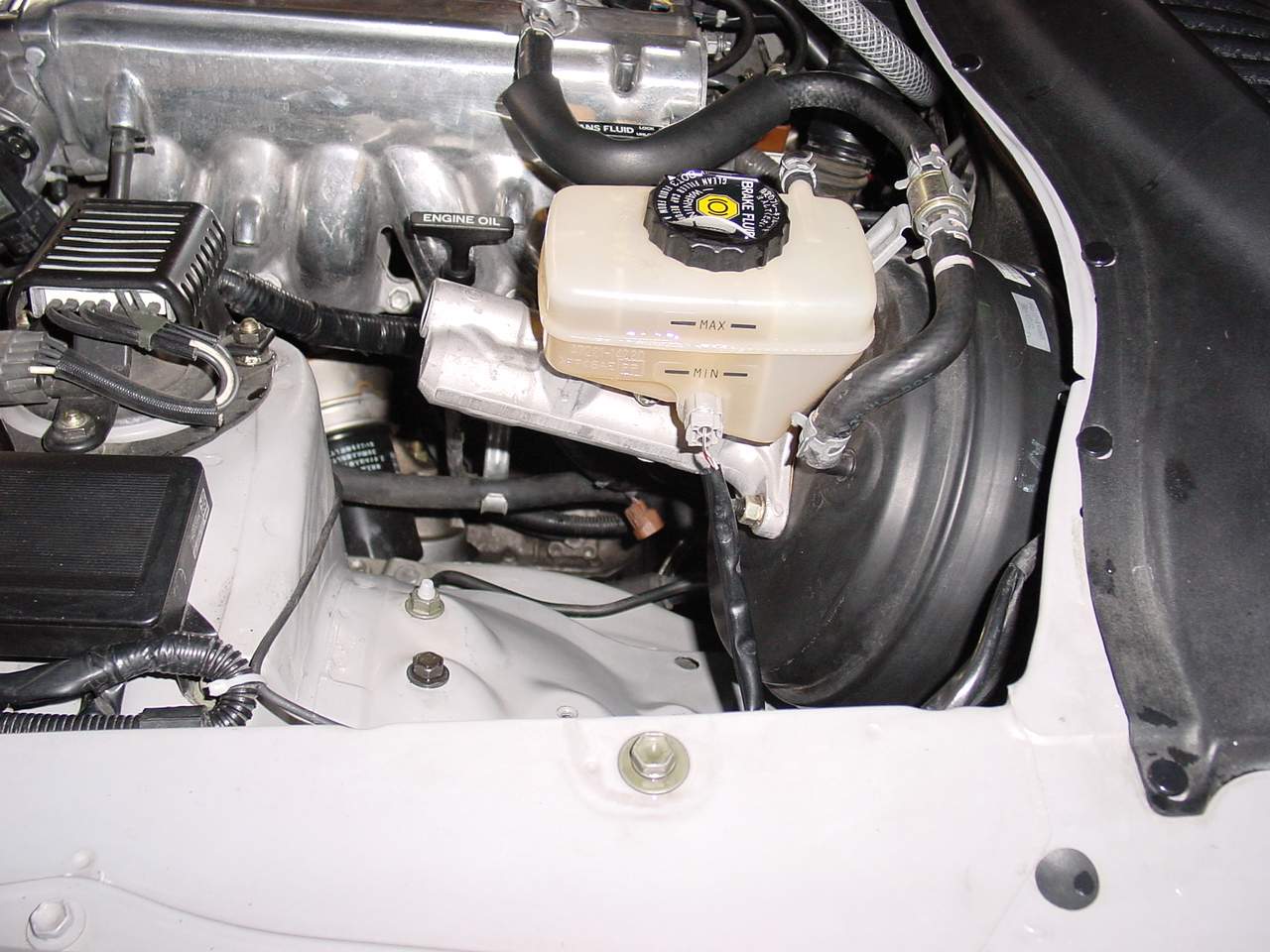

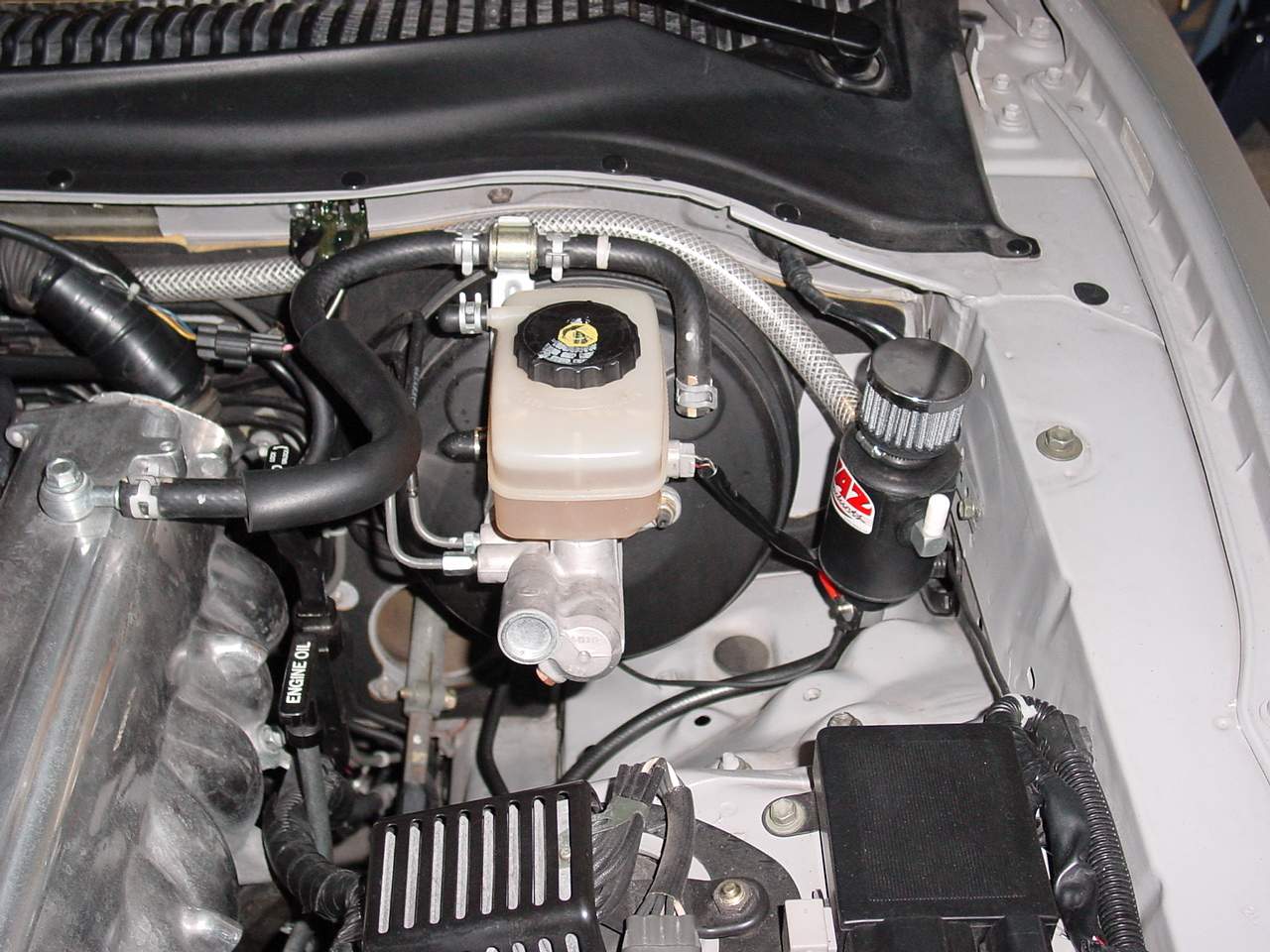

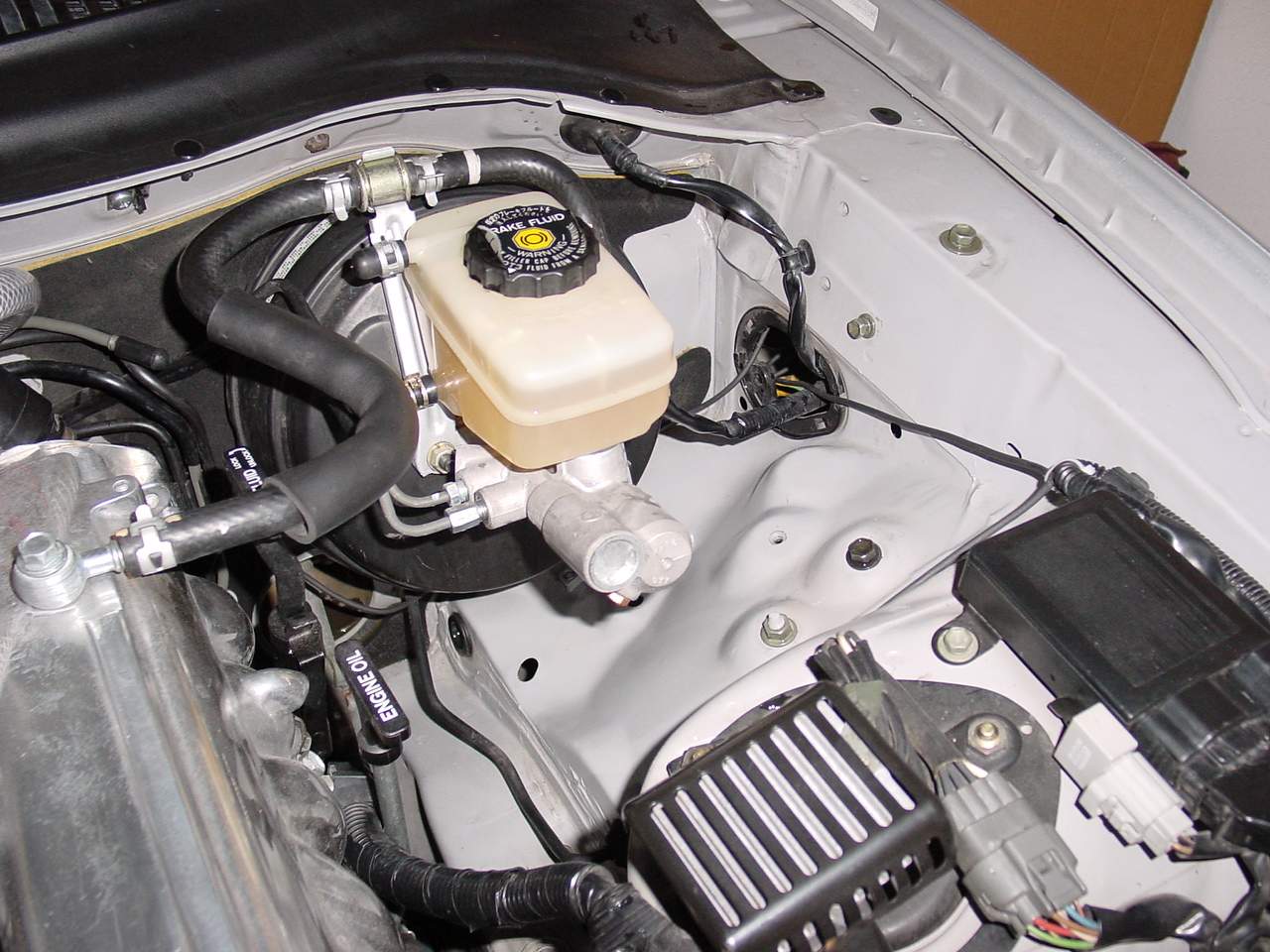

97-98 never came with a trac rear brake pump (trac and abs were updated on 97-98), in the photo a 93-95 supra that was modified to have the 97-98 brake master....to achieve that the trac rear brake pump was removed....

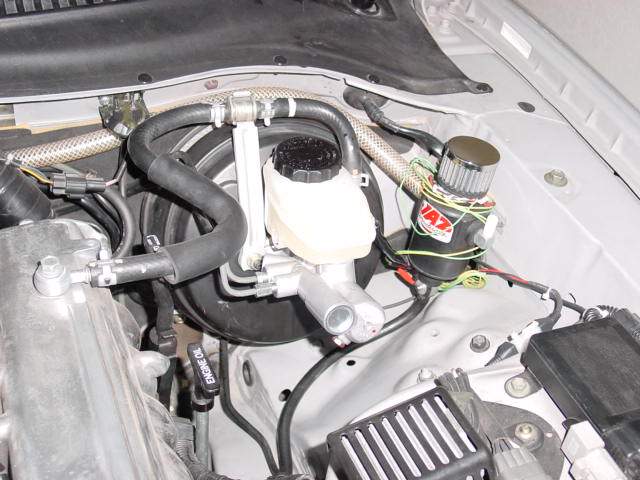

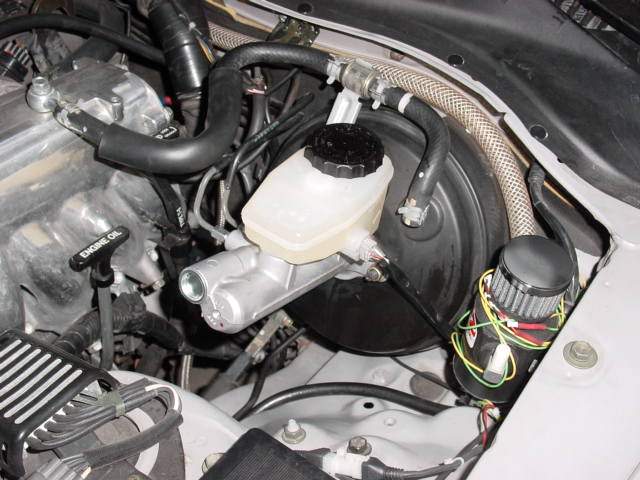

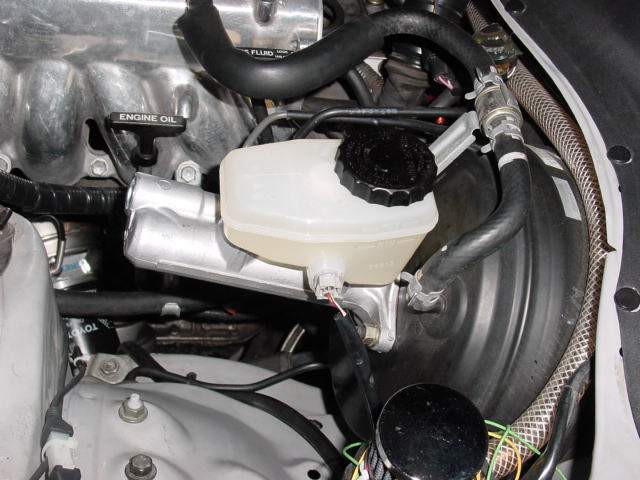

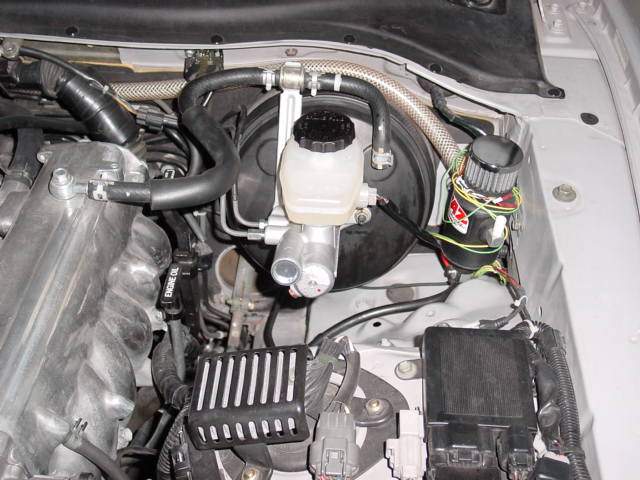

Notice the trac rear brake pump on this 93-96 supras was removed, but it still got its 93-95 brake master...

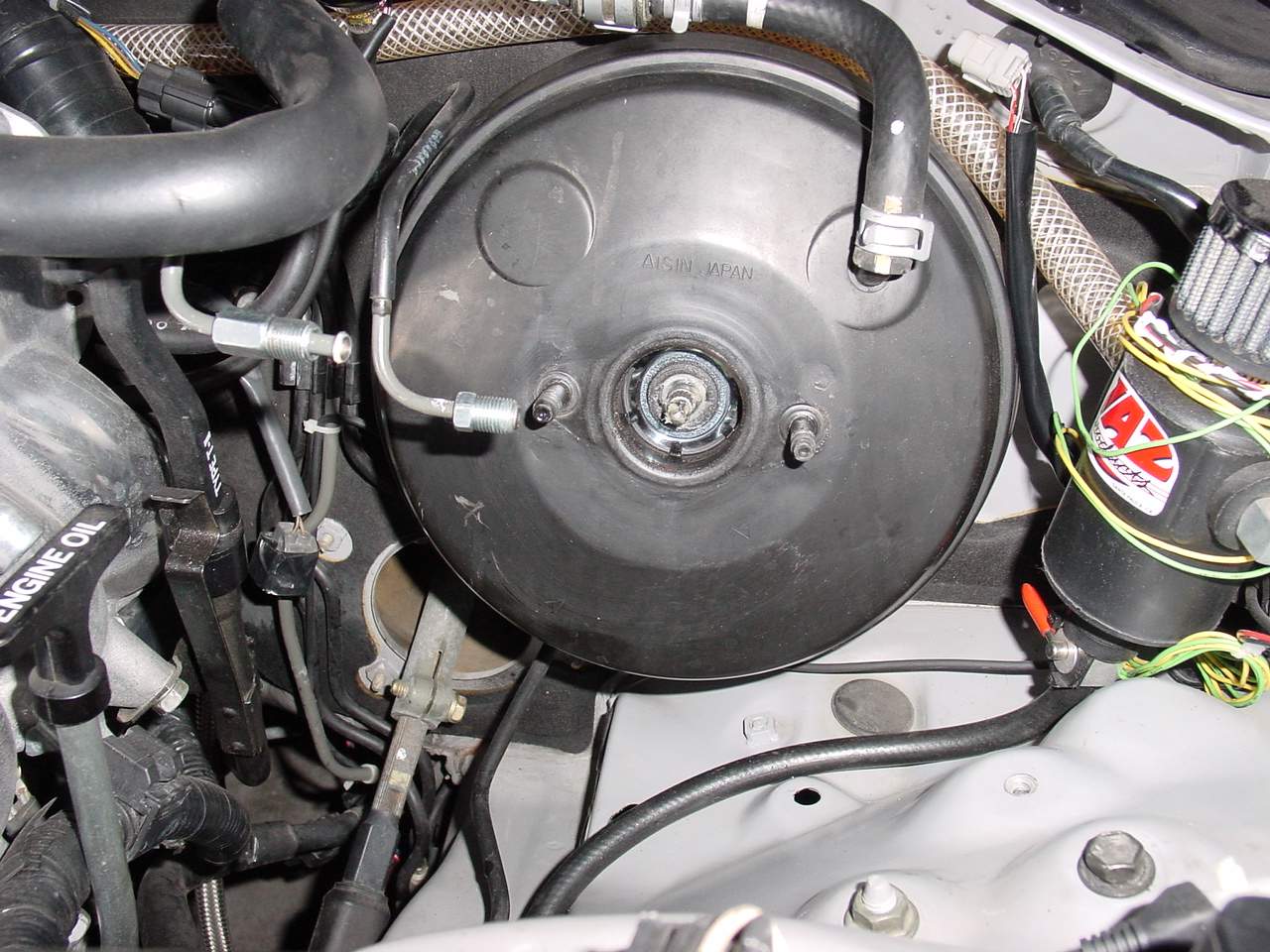

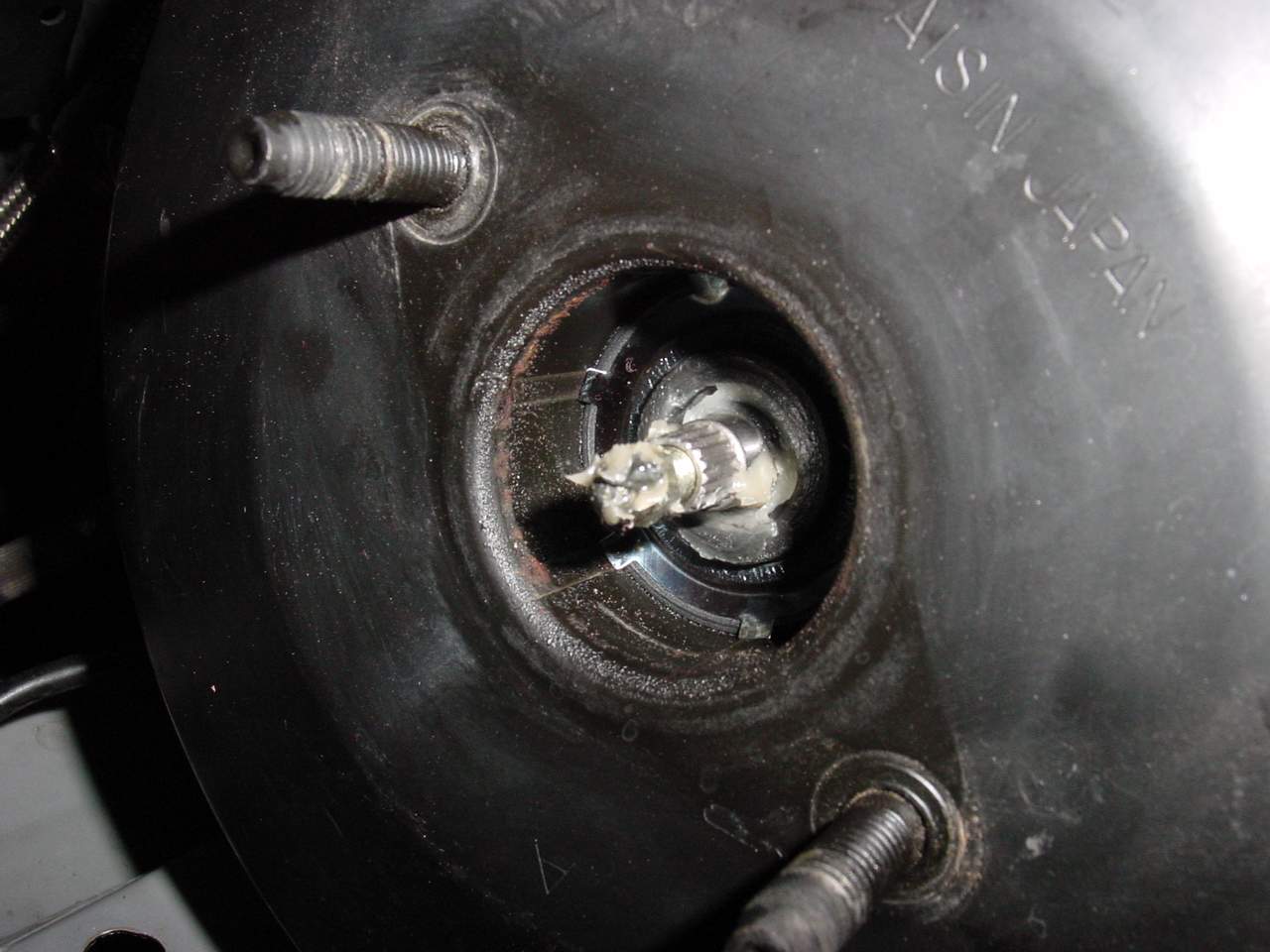

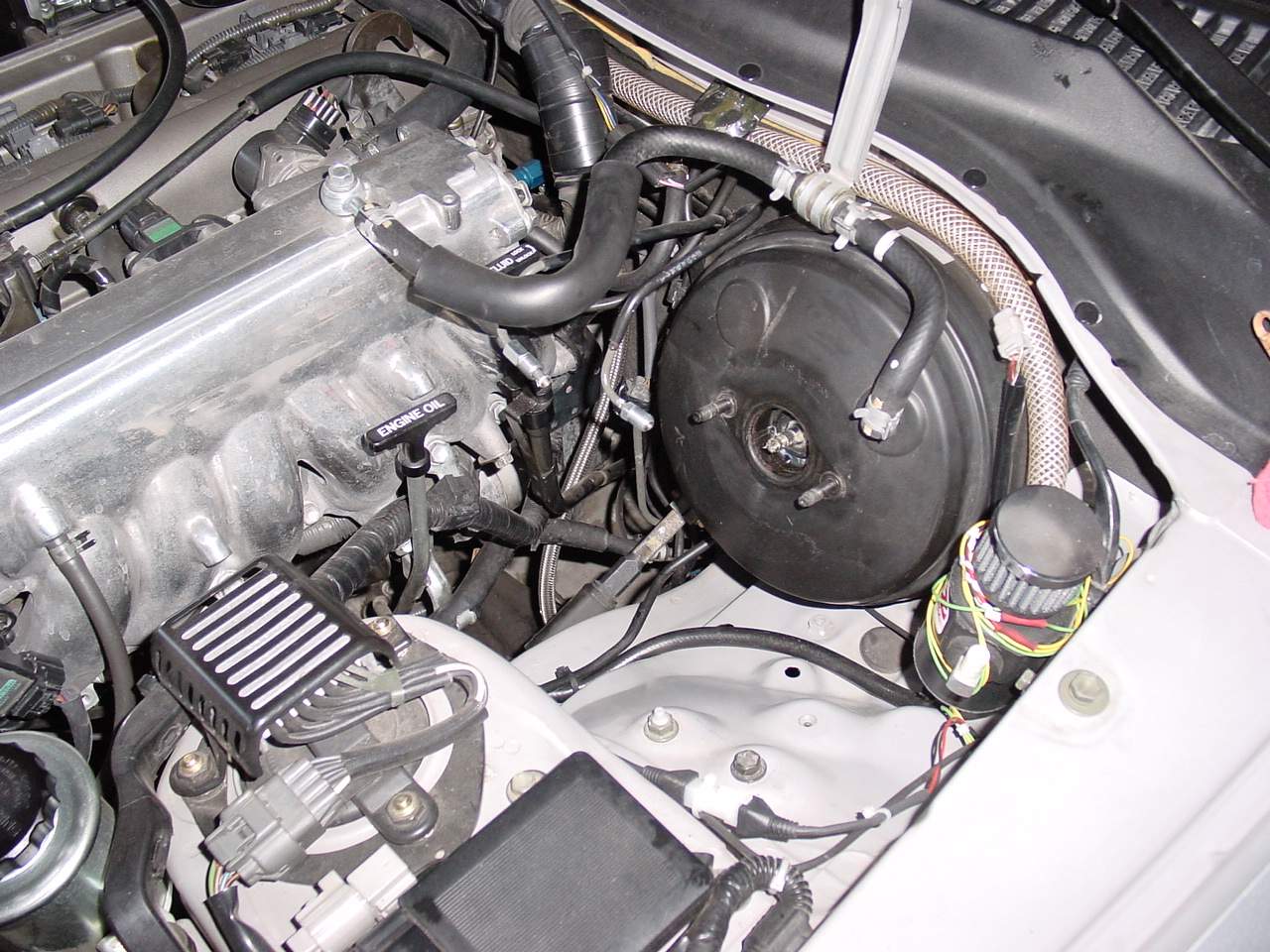

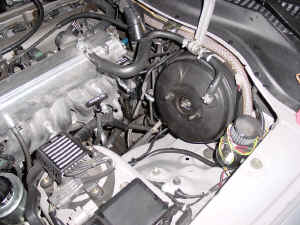

Brake Booster
