Oil pressure sensor mod

Pressure Sensor Mod for 93-97 Only

Factory Oil pressure sensor and warning
method is not exactly the greatest for those of us with modified
engines.  I”ve been looking for a way to keep the redundancy of
having the factory sensor in place with it”s warning but also wanted to
run a oil pressure gauge.   Here is what I found to be the best
way of doing it.

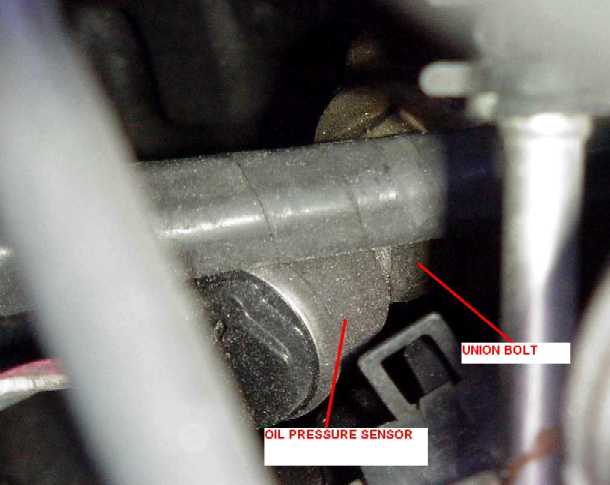

If you ever tried to access the factory oil pressure
sensor, sale you”ll know how difficult it is to get to it.  Instead of
removing it just use the Union bolt from the new 2001 Lexus IS300
(picture below) OR from a 1998tt Supra.  This will allow you to add a second oil pressure
sensor for your pressure gauge easily.

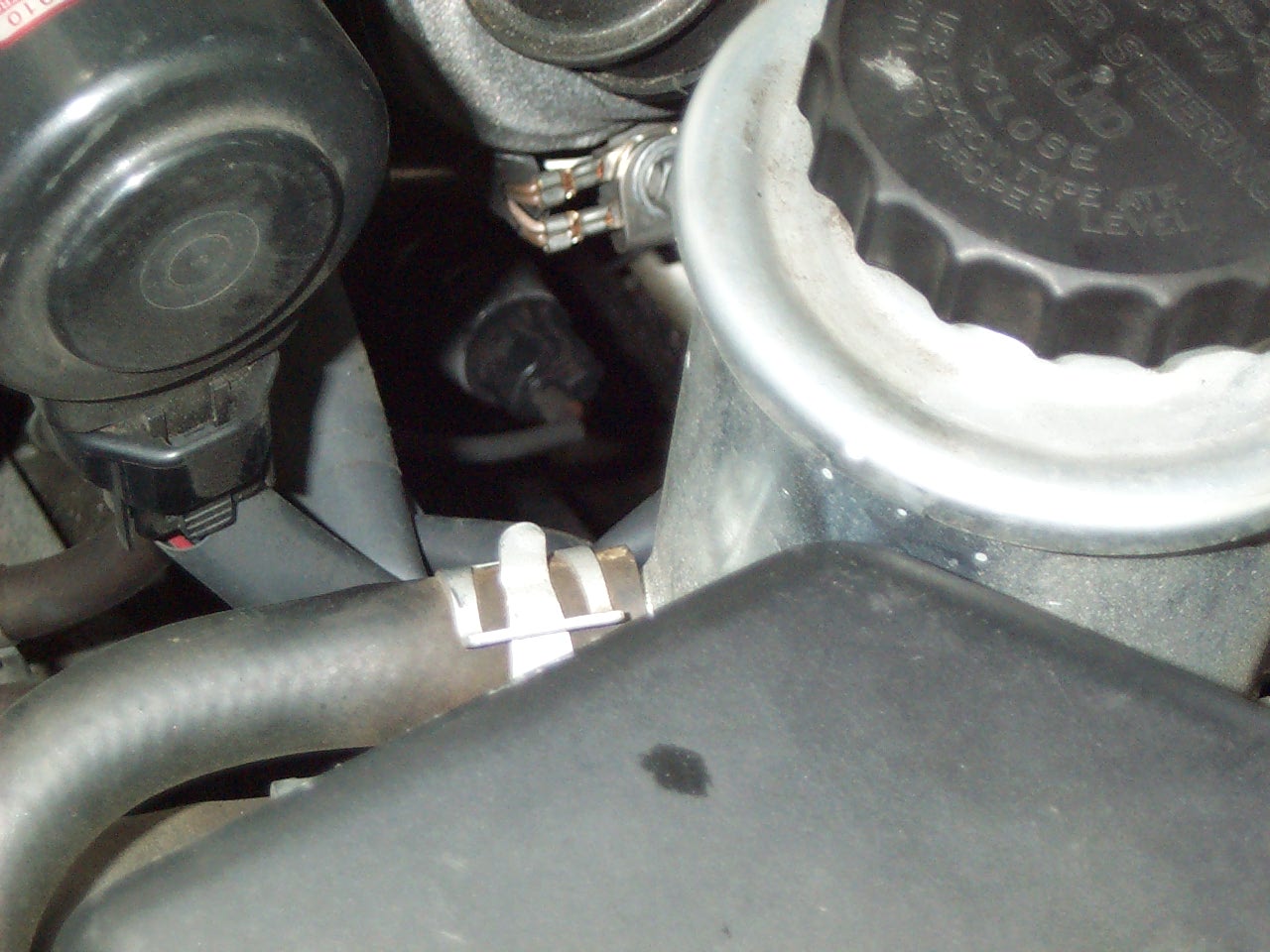

The Lexus IS300 & 1998 Supra run the factory pressure sensor on the
base of the union bolt which is much easier to access than the Supra
pressure sensor which it screwed into the block behind the AC

Simply remove the stock union bolt and replace it with
the Lexus unit.  Once tighten to recommended torque (65 pounds), screw in the
aftermarket oil pressure sensor to the base of the union bolt.  Make
sure to use some Teflon tape on the new pressure casino francais avec bonus sensor to keep it from
developing any leaks. The whole job will take less than 1/2 hour and now
you have two devices that will warn you of impending disaster should the
oil pressure drop to dangerous levels.

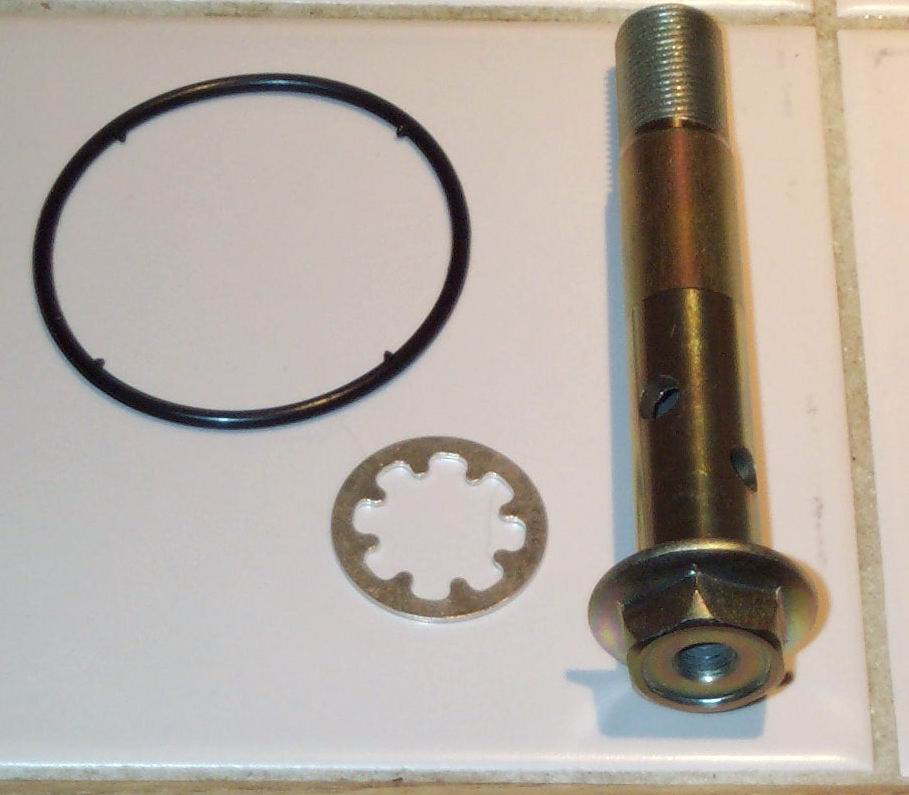

The part number you need are,

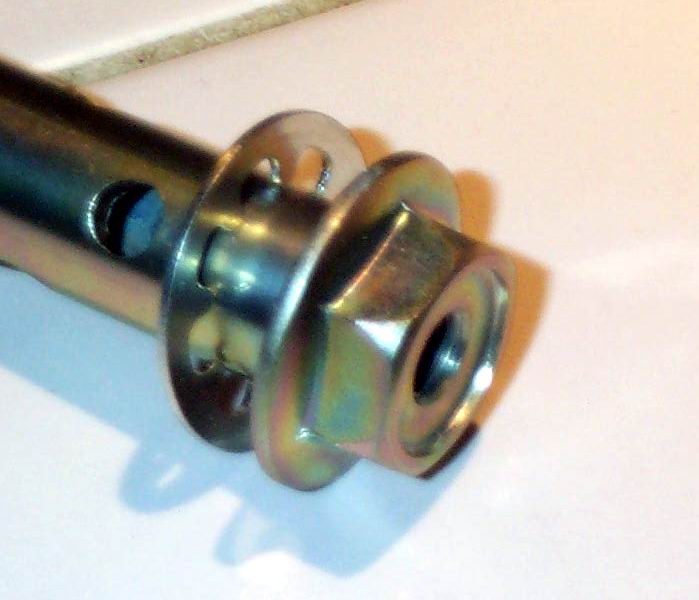

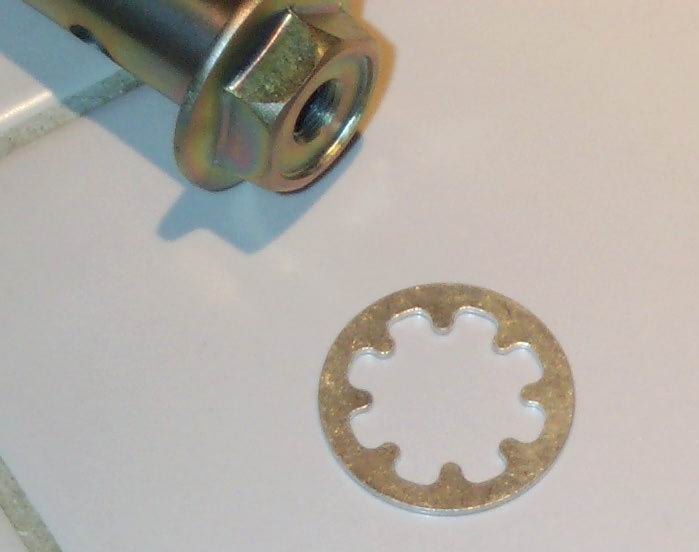

  • 90401-19008 Union Bolt
  • 90430-20016
  • 90301-68005 O-ring

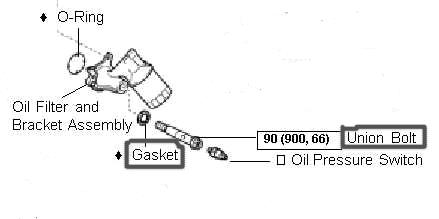

Supra 1998 / 2001 Lexus IS300 Setup

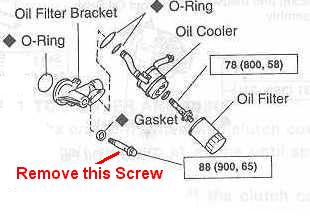

Supra 93-97 Setup

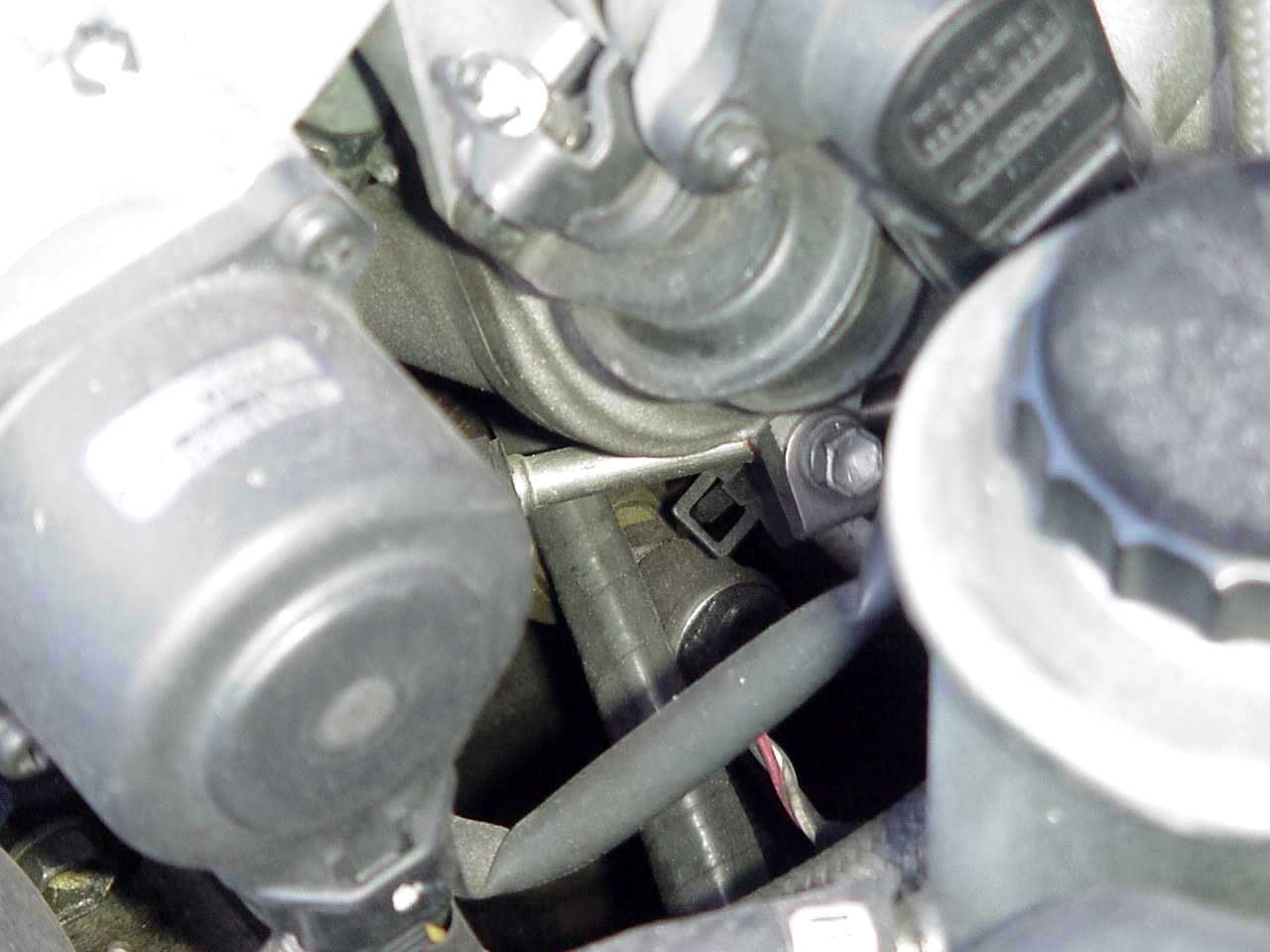

After the mod is done it should
look like this,
