Fuel bypass line mod

Fuel Dampener
Bypass Mod



Purpose:
this kit purpose is to increase fuel delivery
to the stock rail and injectors BY removing a major restriction in the fuel line, discount
3 banjo bolts and the Fuel Pulsation Dampener.

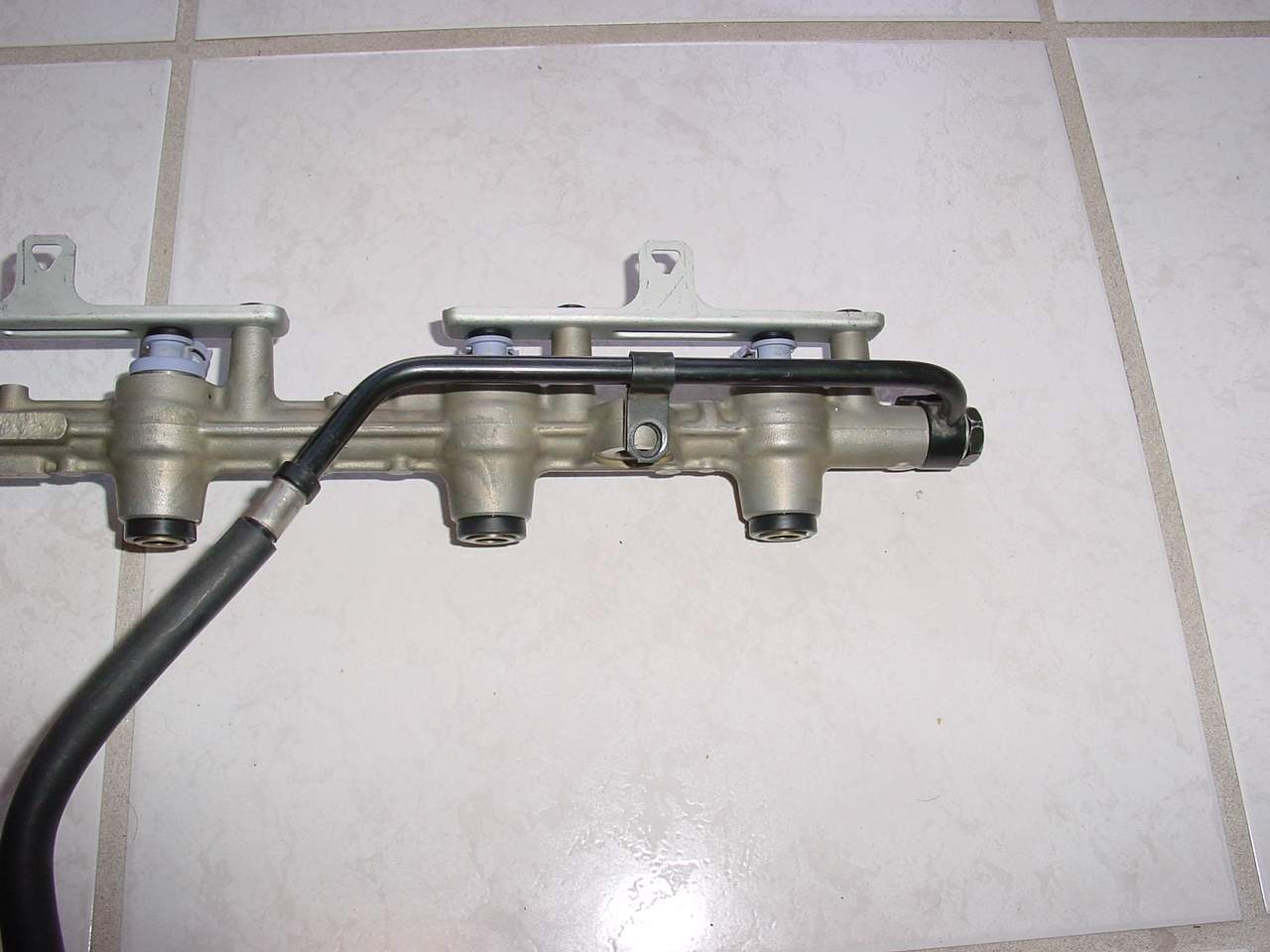

Here is the stock line we are
replacing







Here is the BD Fuel Bypass Line

line1 (69253 bytes)

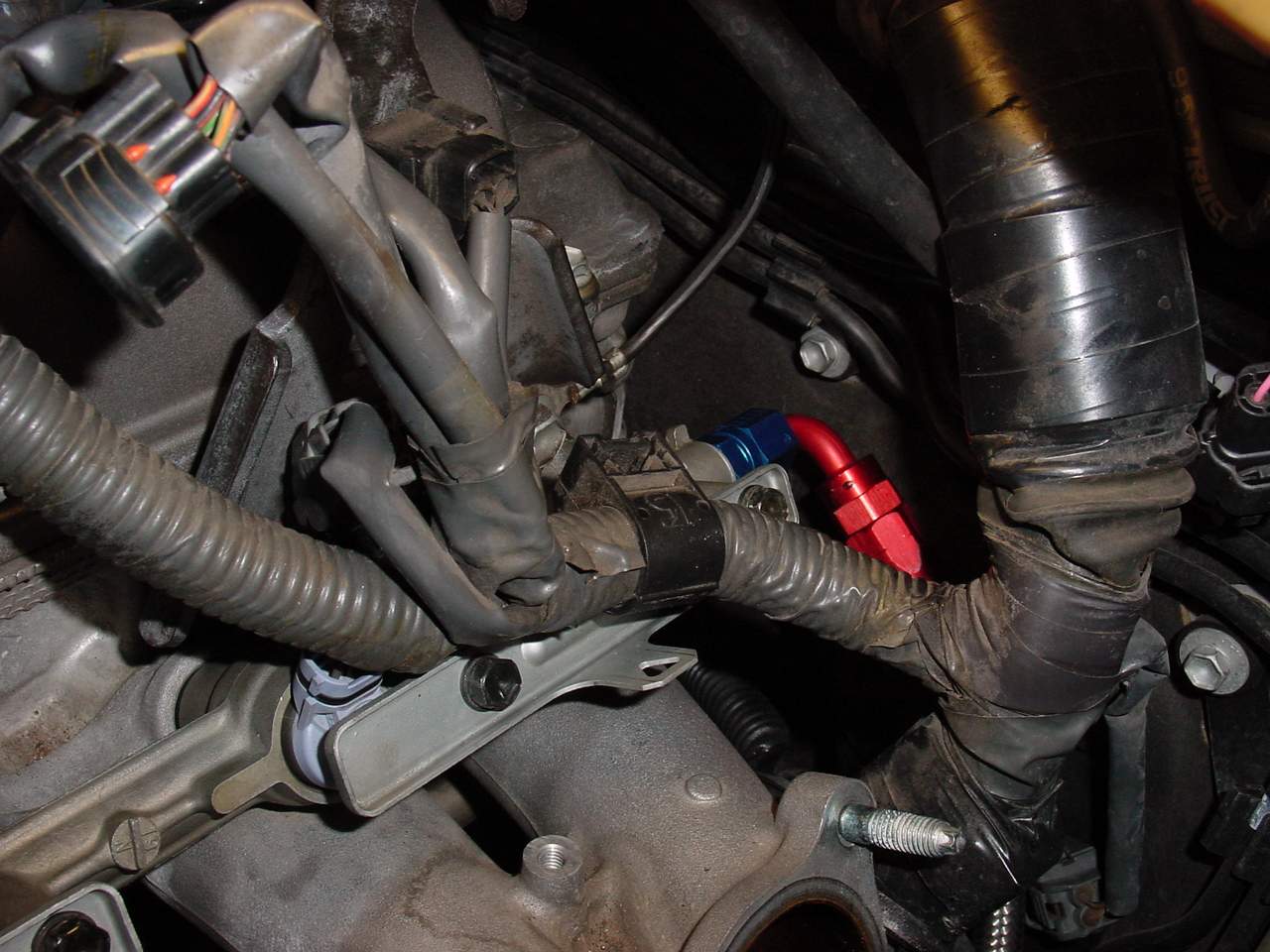

Here is how it look installed
to the stock fuel rail and stock fuel filter


Comparing both lines






The 90 degree fitting
goes to the stock rail side

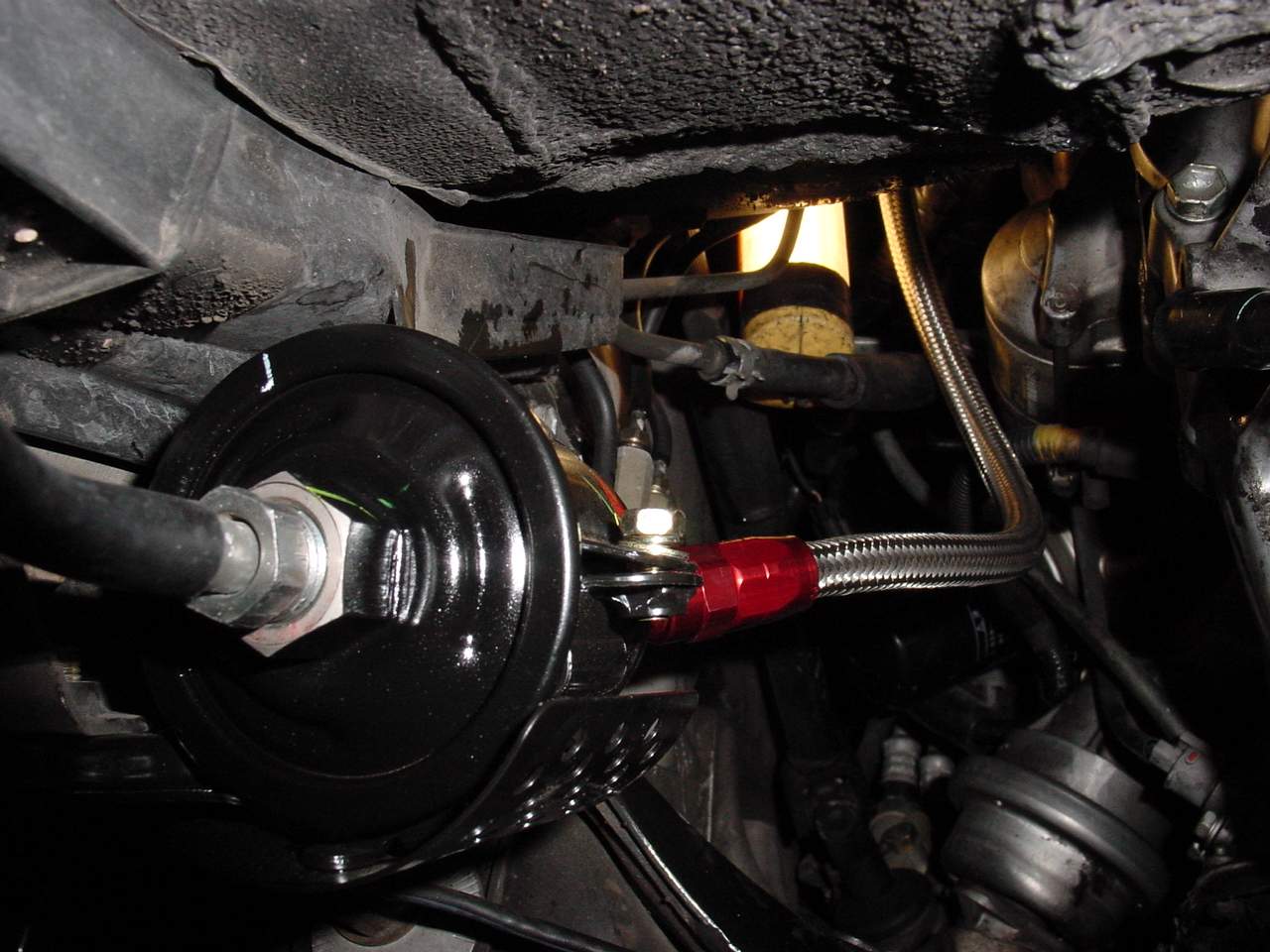

The 45 degree side goes
to the stock filter side, pharmacy make sure to have fresh filter, adiposity and also use one of
the filter gasket along with the gasket that comes with the hose kit, that will give you a clean, leak free install












Photos on the

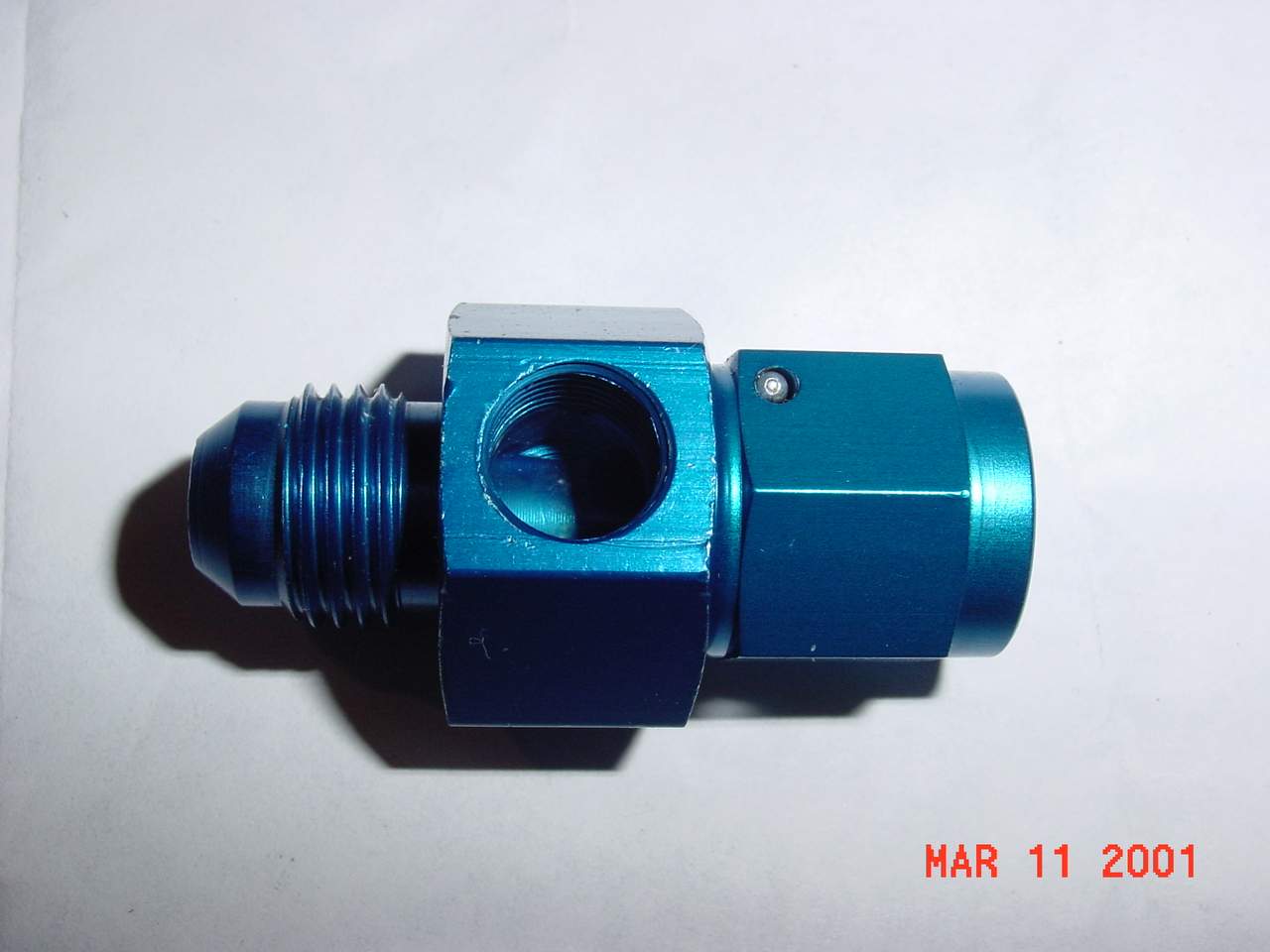

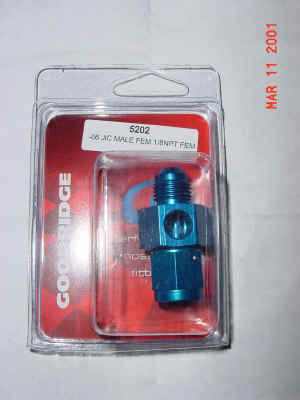

Fitting Used to Add a Fuel Pressure Gauge
