Installing the 6spd Transmission



- At this point you will need to get all the parts ready for your 6spd transmission,

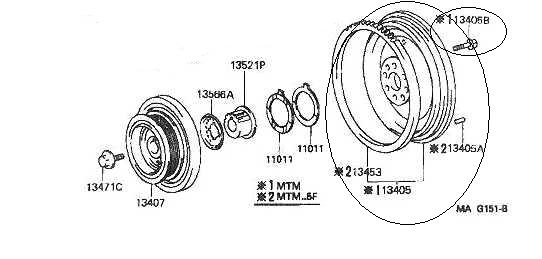

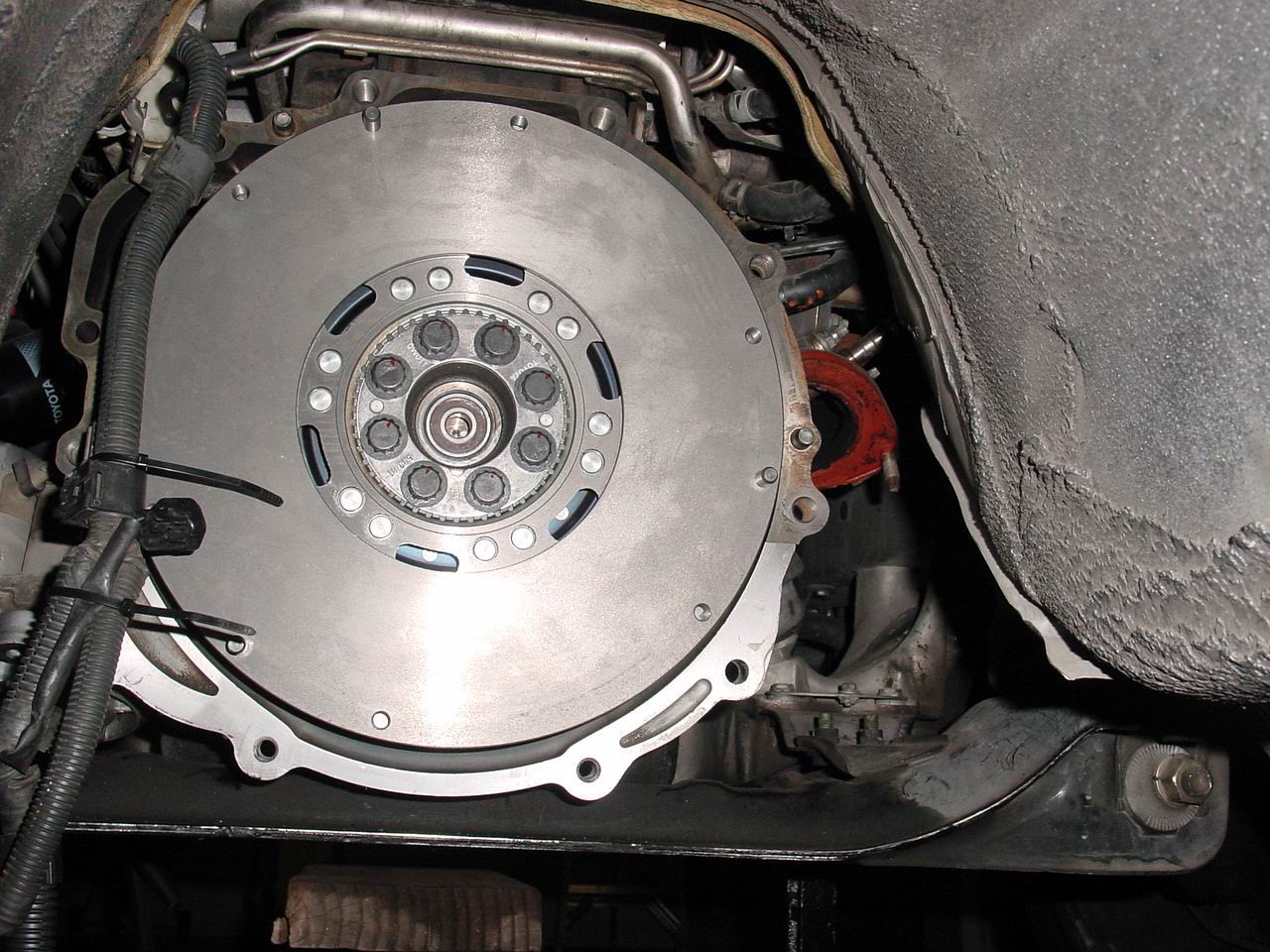

Flywheel and flywheel screw

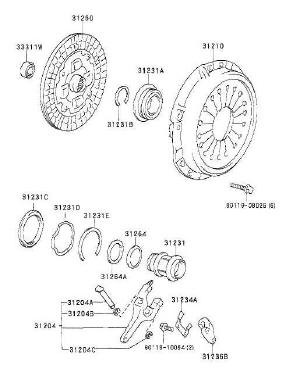

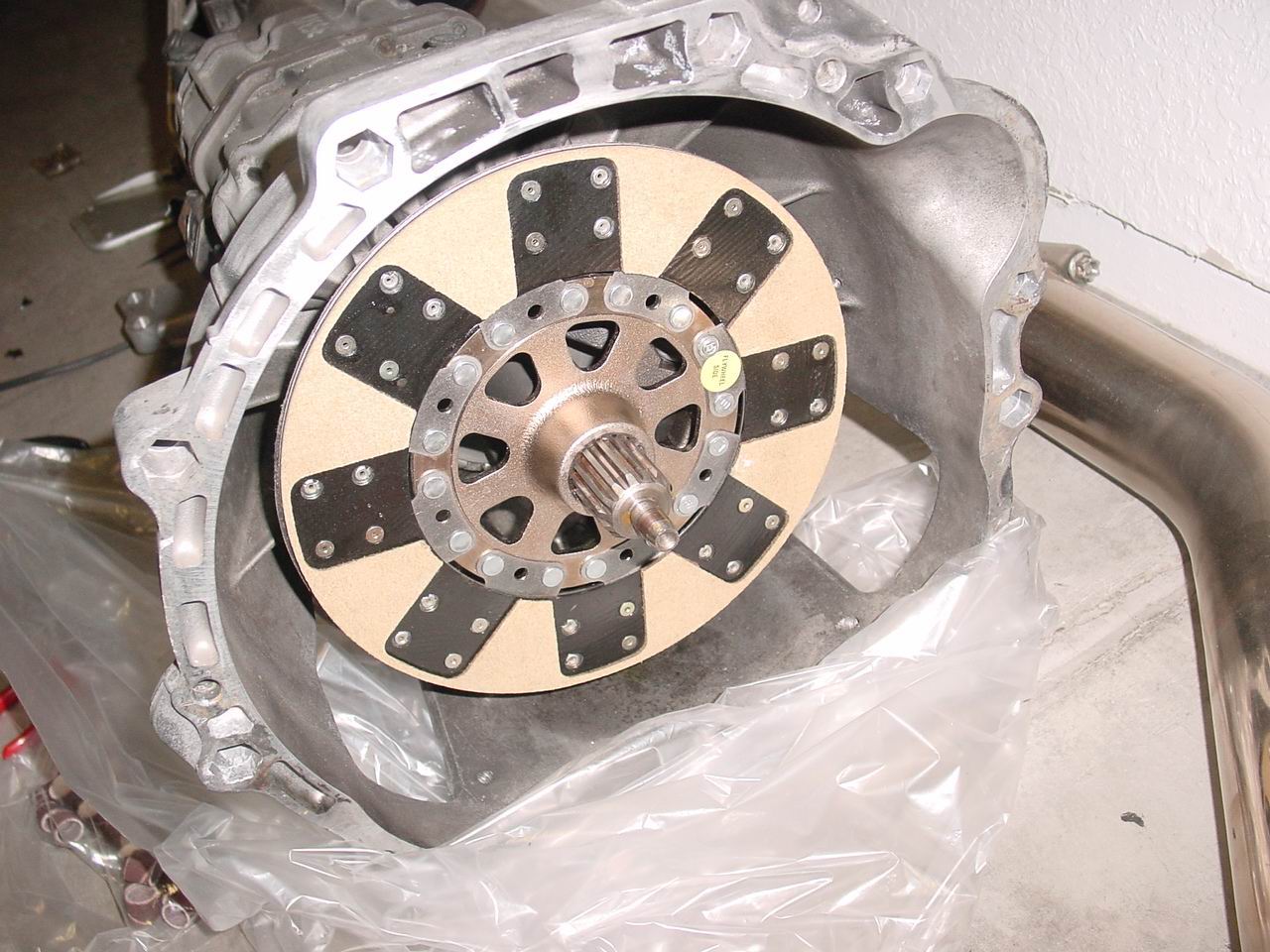

Clutch Disk system and related parts,

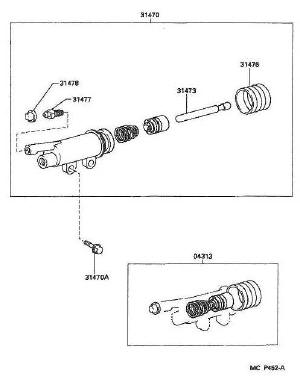

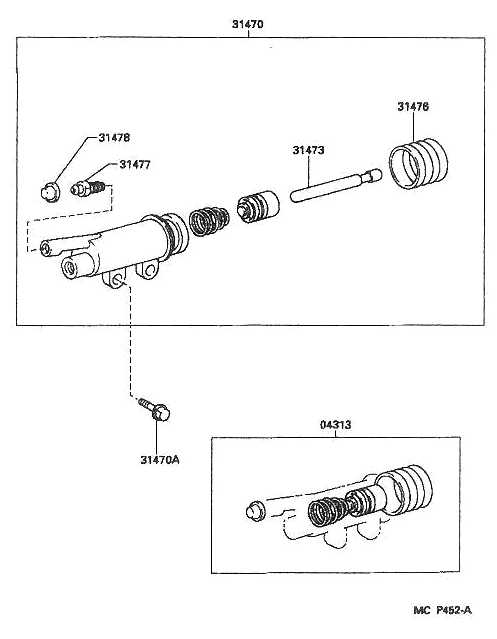

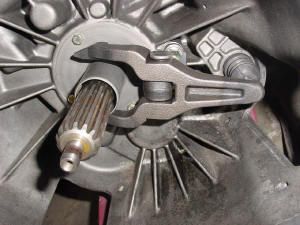

Clutch Slave,

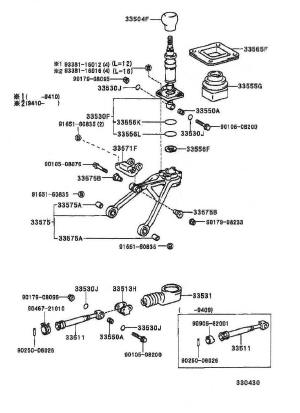

Shifter and related parts,

- You will also need the 6spd transmission mount,



- You will also need the AUTOMATIC CROSS MEMBER, the 6spd cross member wont fit the auto car body, in following picture, the top cross member is for the auto, the bottom for the 6spd which we wont use,




- Now you need to modify the auto ecu harness, basically you will ignore most of  the harness that were used on the automatic tranny (cut them off if you like), you will only use two harness, the Speedo 3 wire black harness from the automatic transmission will fit the 6spd transmission without a problem.

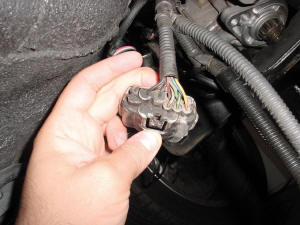

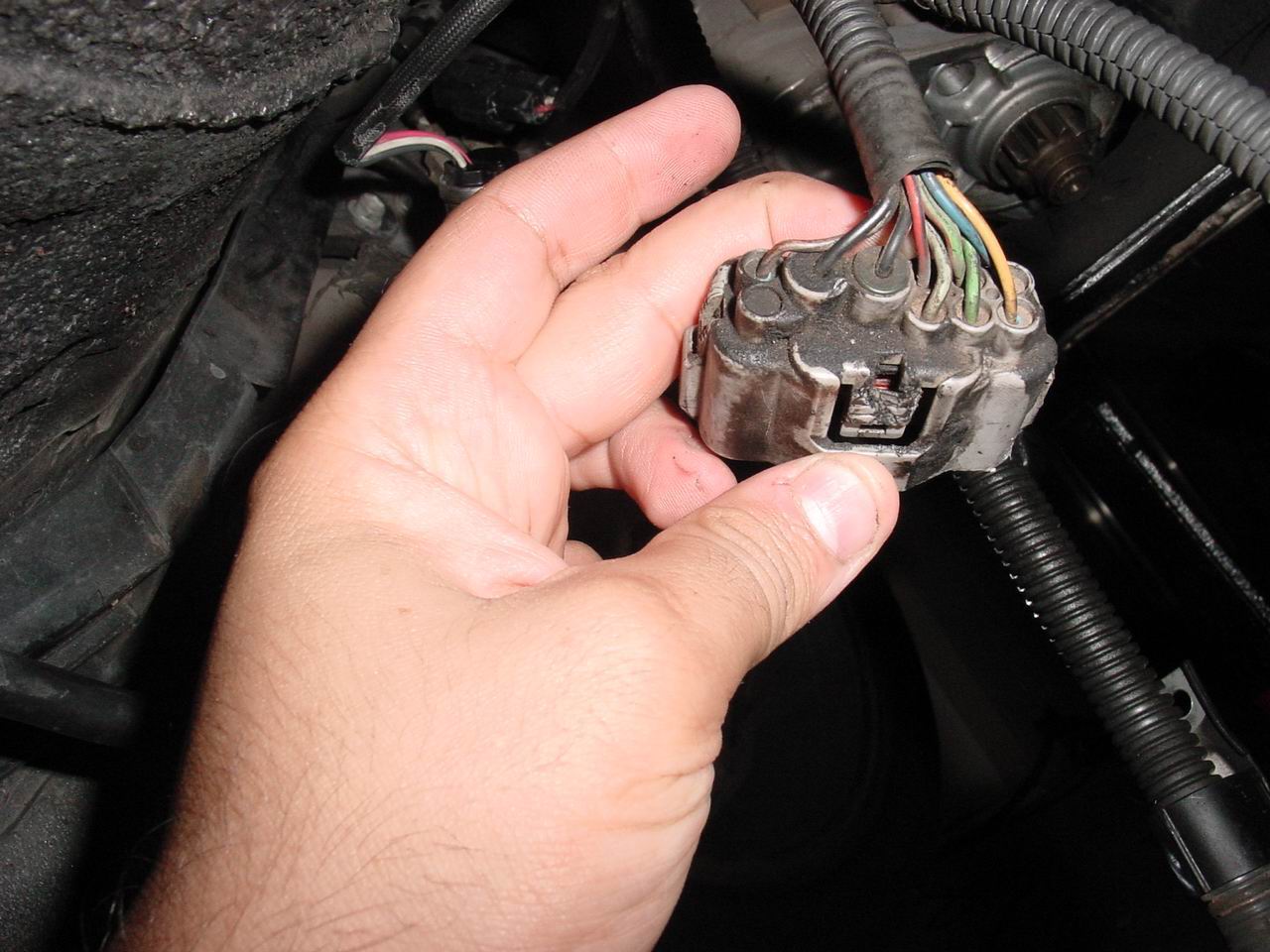

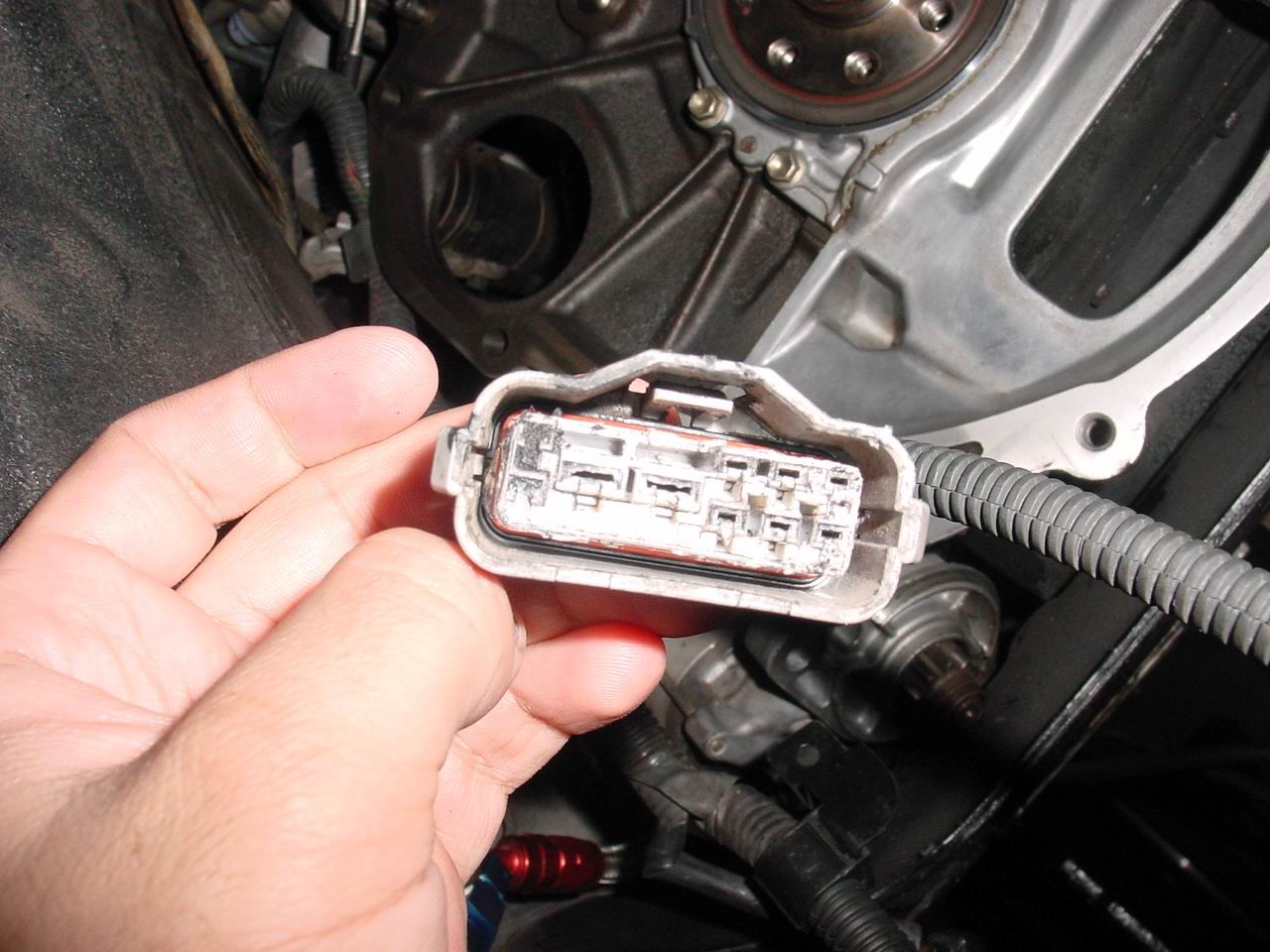

 - Now, the only wire we need to hook up is the reverse light, look for the big auto gray harness as shown in this picture,

- Look for the YELLOW and BLACK/RED wires, if you basically join these two wires, the back up light will turn on (if the car keys are in, and the tranny in reverse), you can test it that way.

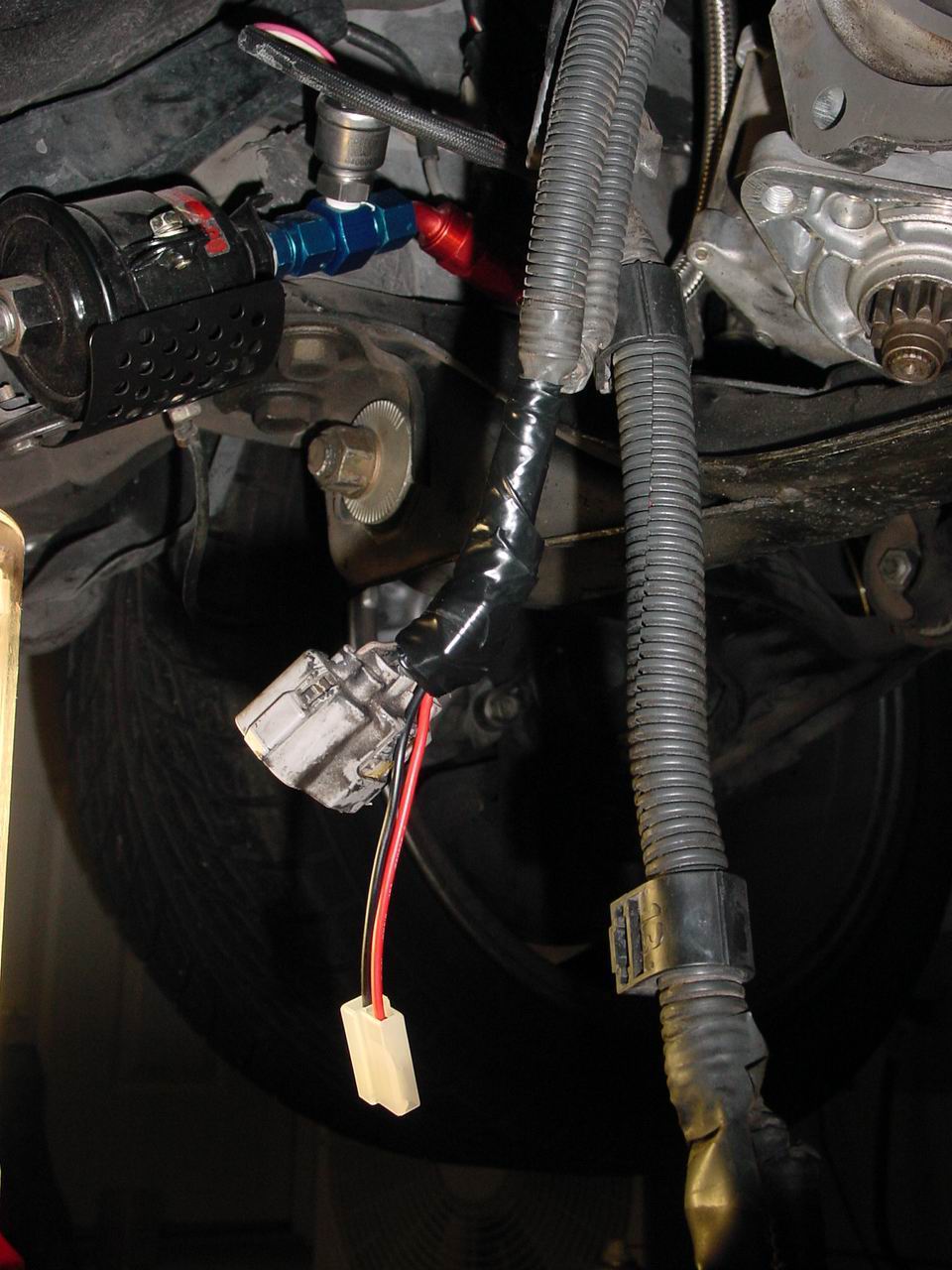

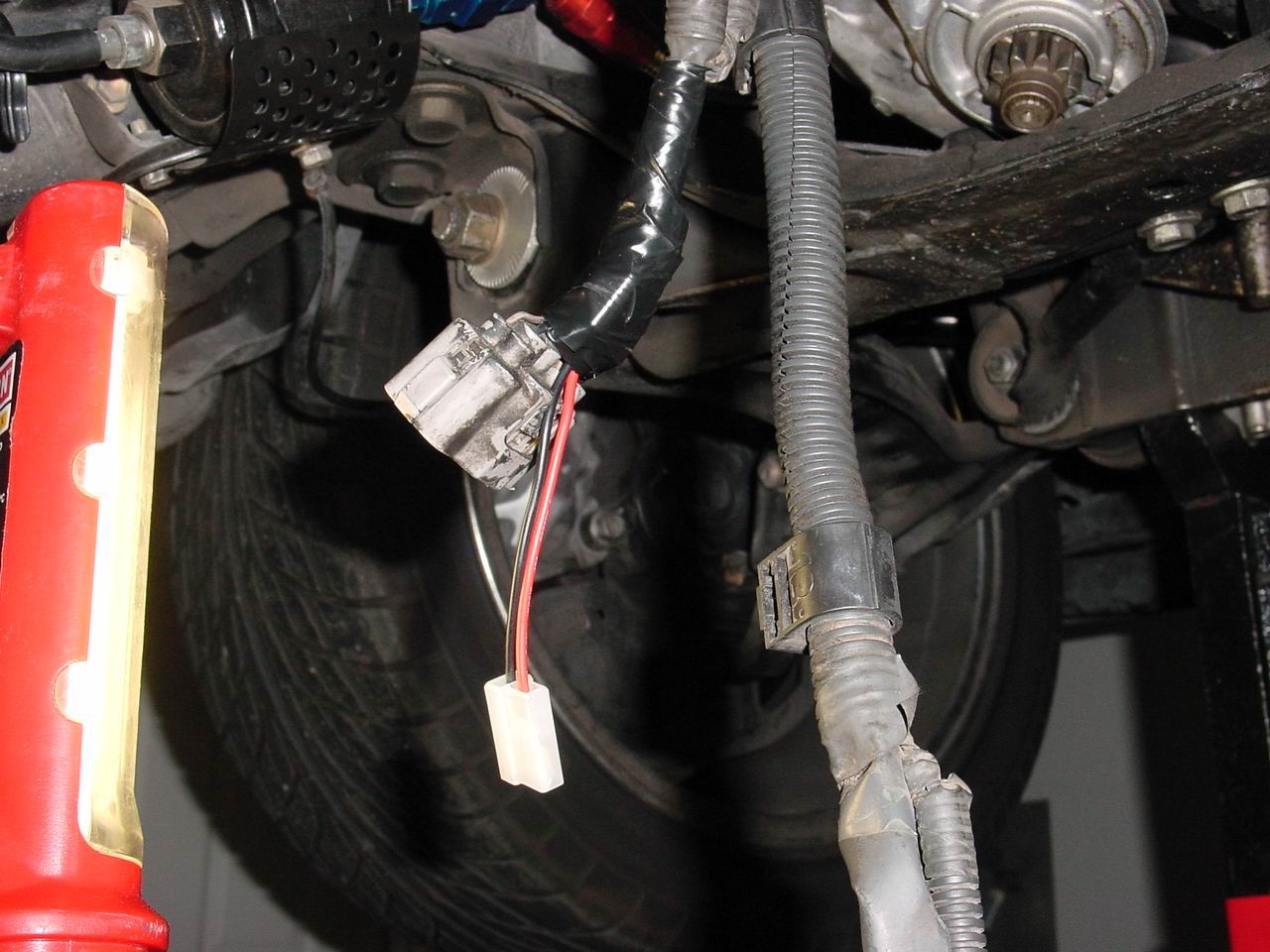

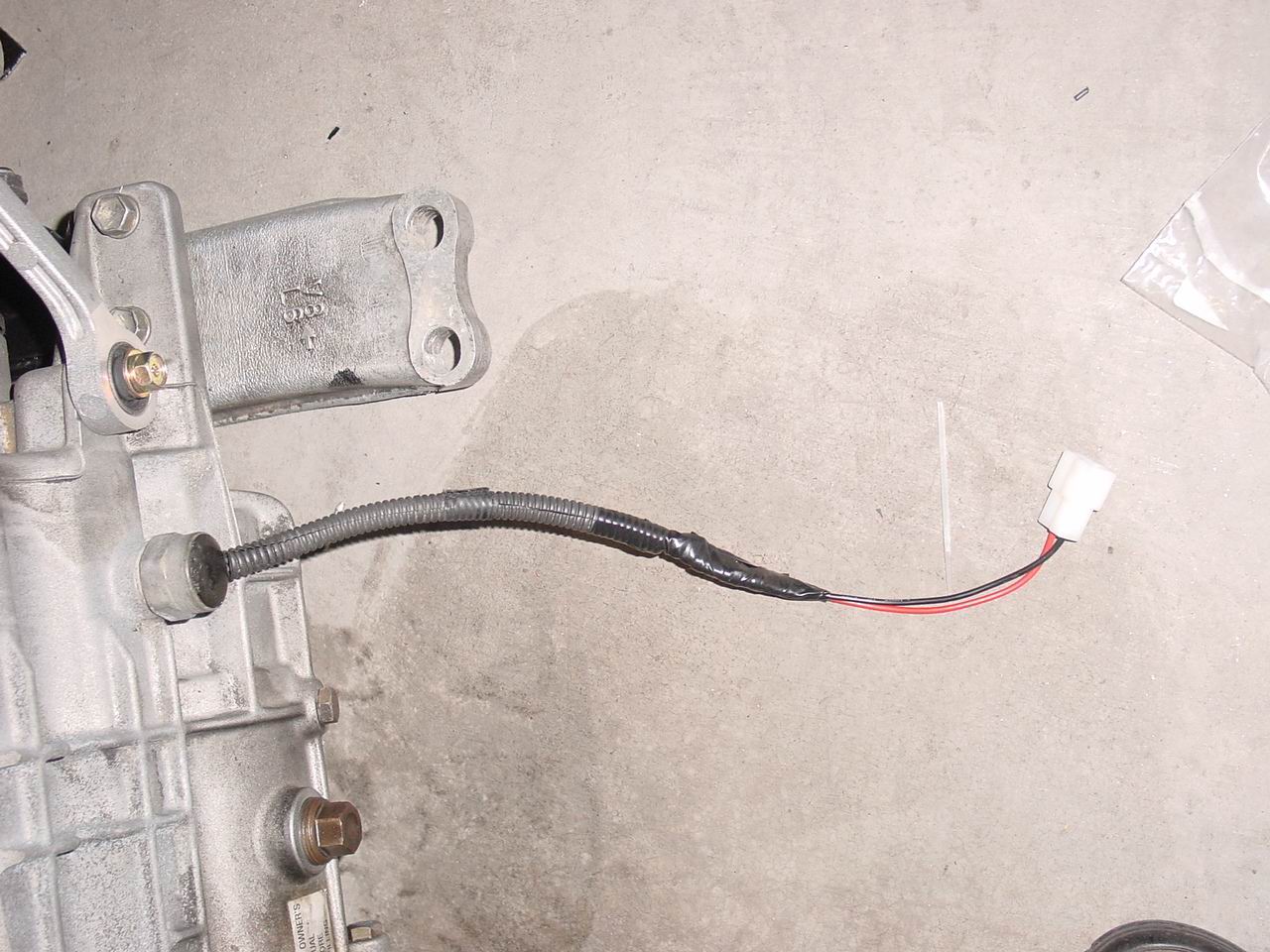

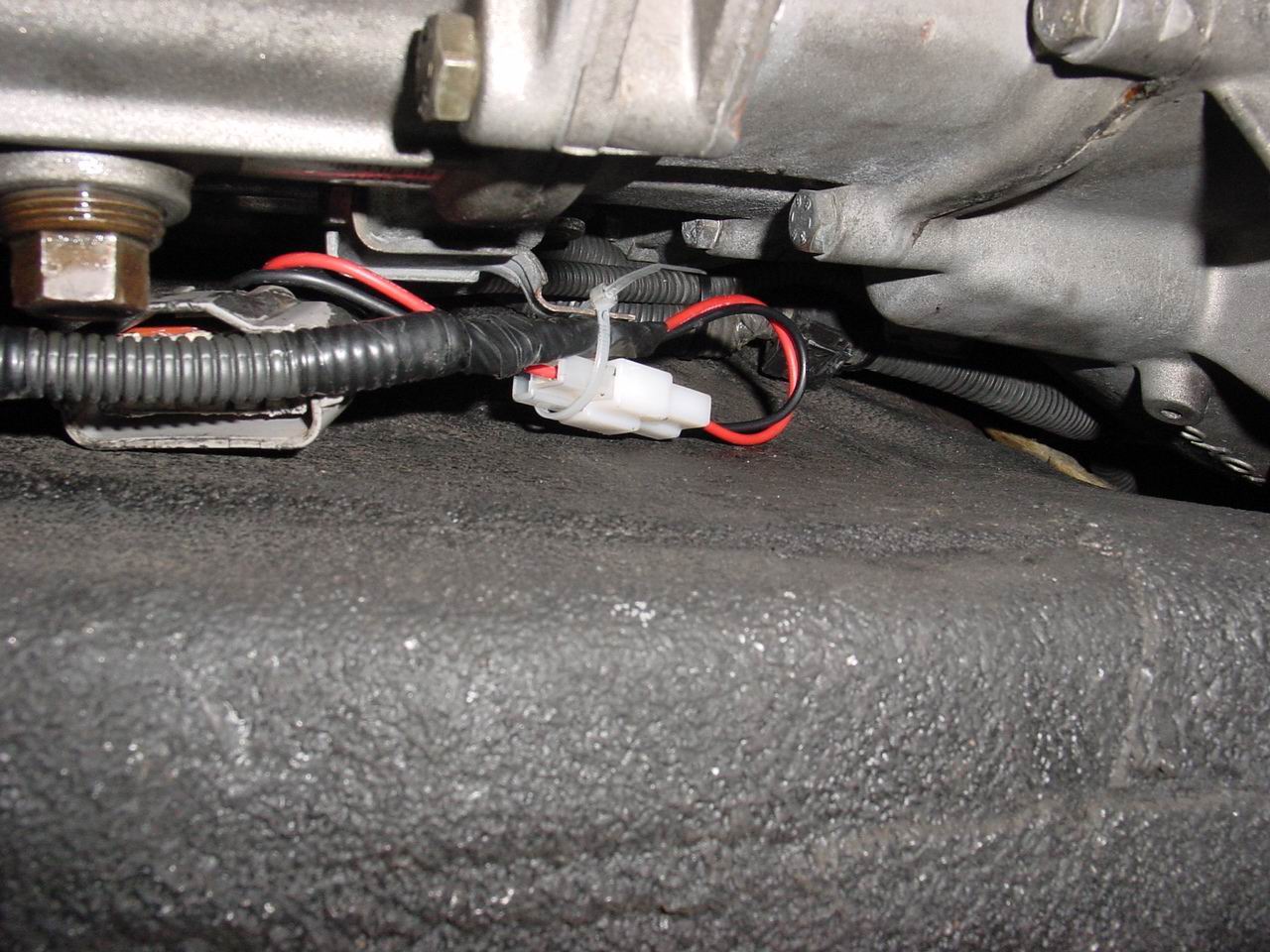

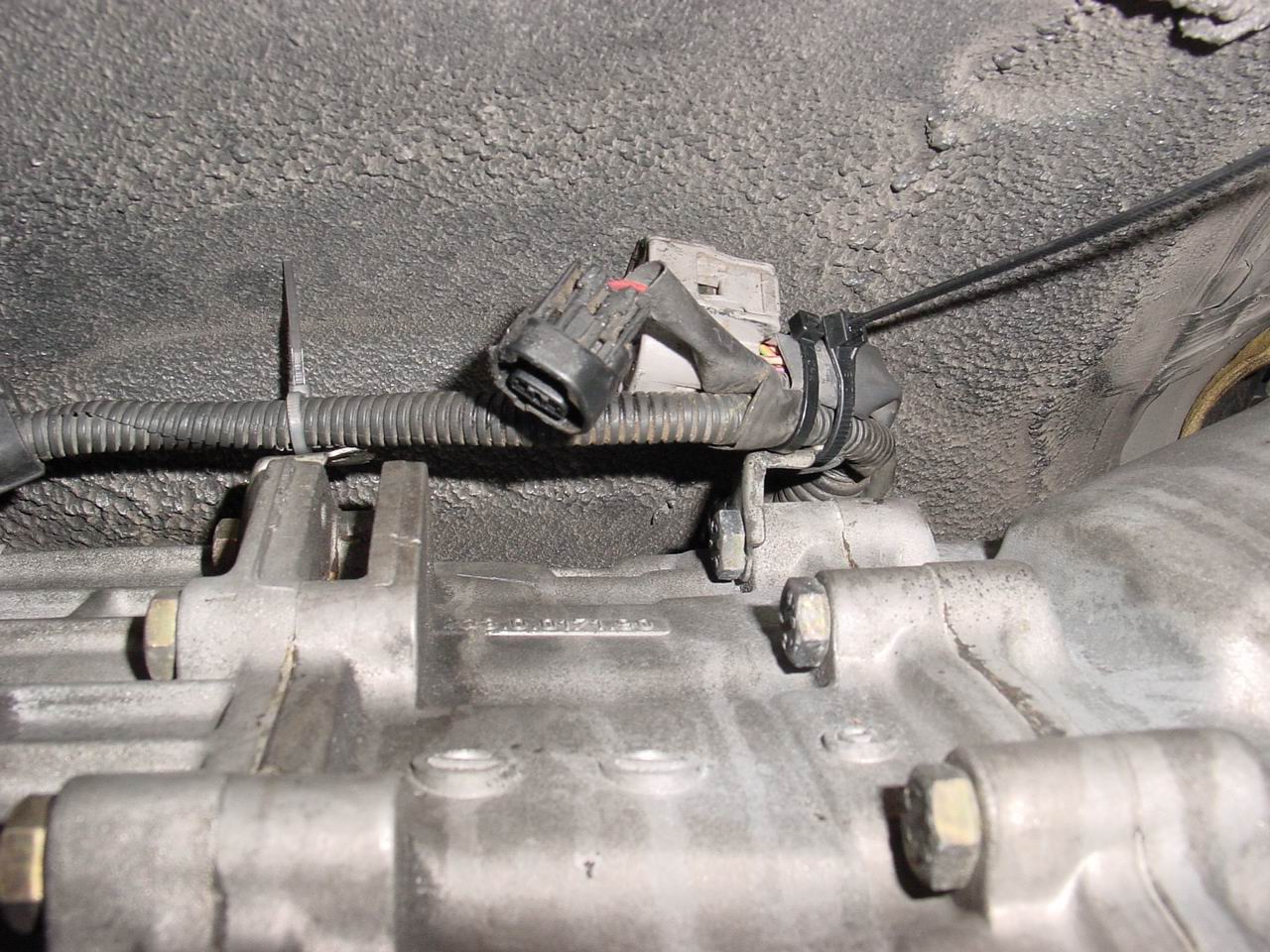

- You will need to make or buy a 2 wire harness and splice it into the auto harness, and the 6spd transmission, order wont matter, hook them in any way you like, look at these pictures,

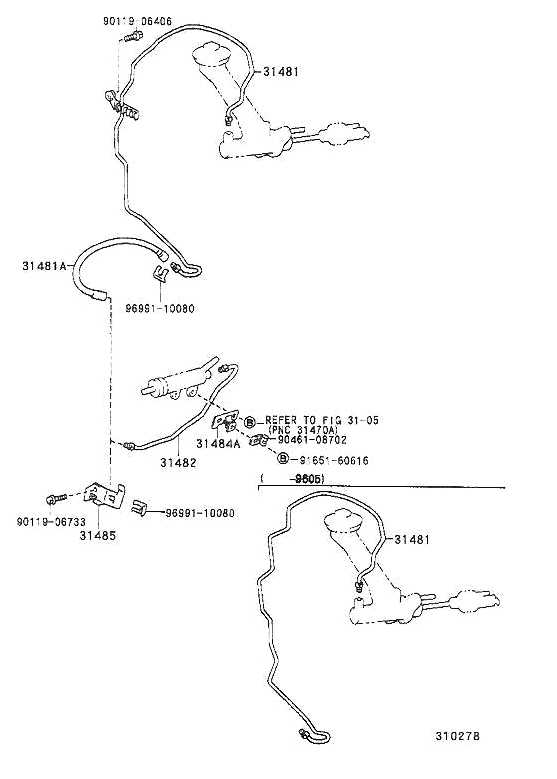

- Next, its time to run the clutch hydraulic lines, you can use the Toyota hardware as shown in the picture below, or try my cost effective option.

(Optional) Toyota Hydraulic lines,

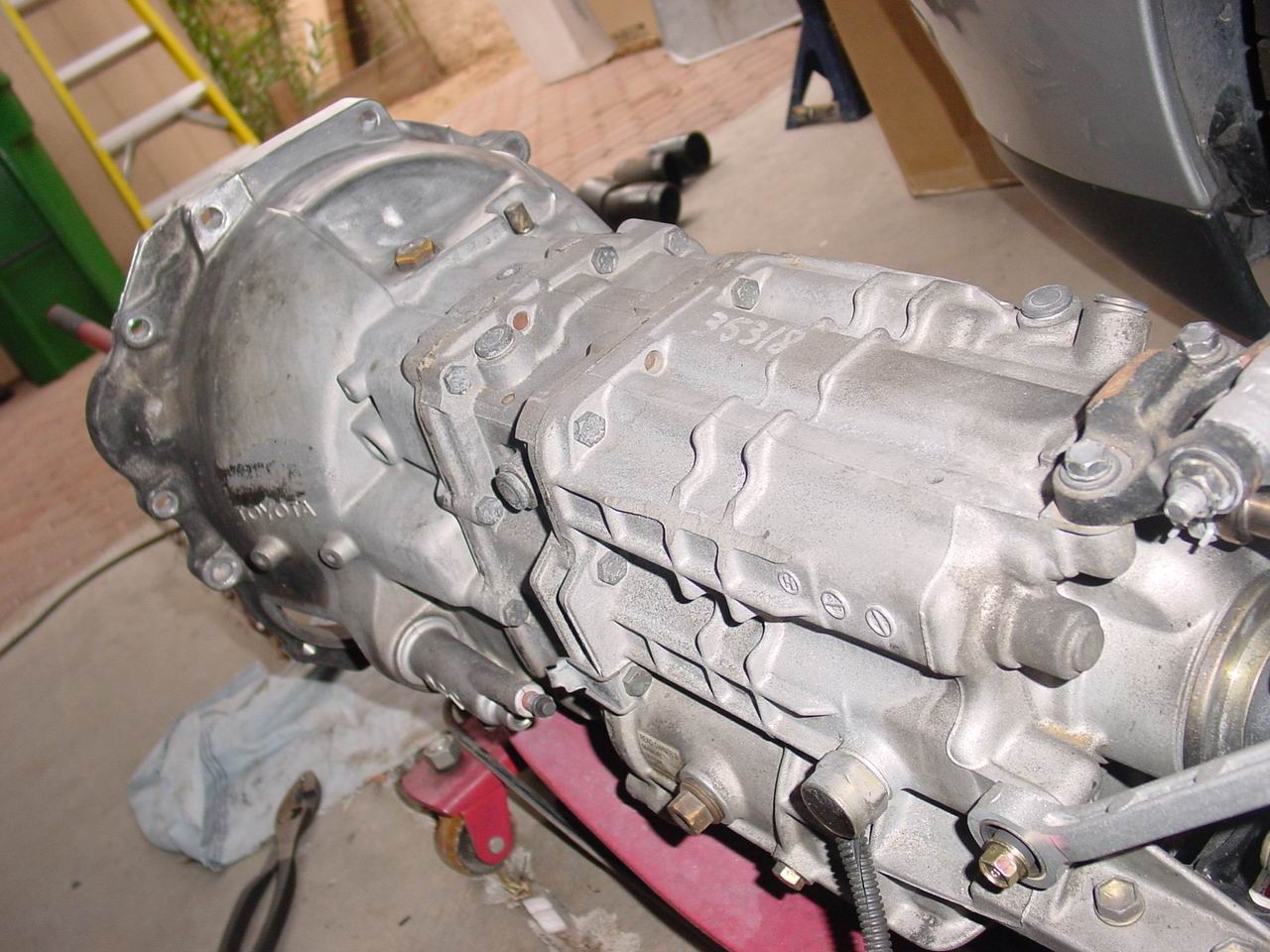

- Get your 6spd transmission ready by bolting all the neccessary parts on it,



- By now you have the 6spd sub-tunnel ready, the wiring ready, transmission parts bolted on it, clutch hydraulic lines ready, the rest is like installing any supra 6spd transmission, you can follow the factory manual on the installation on the transmission by clicking on this link, http://mkiv.com/manual/manualtt/clutch_replacement/index.html

Or try This Tech Page on how to install a clutch.

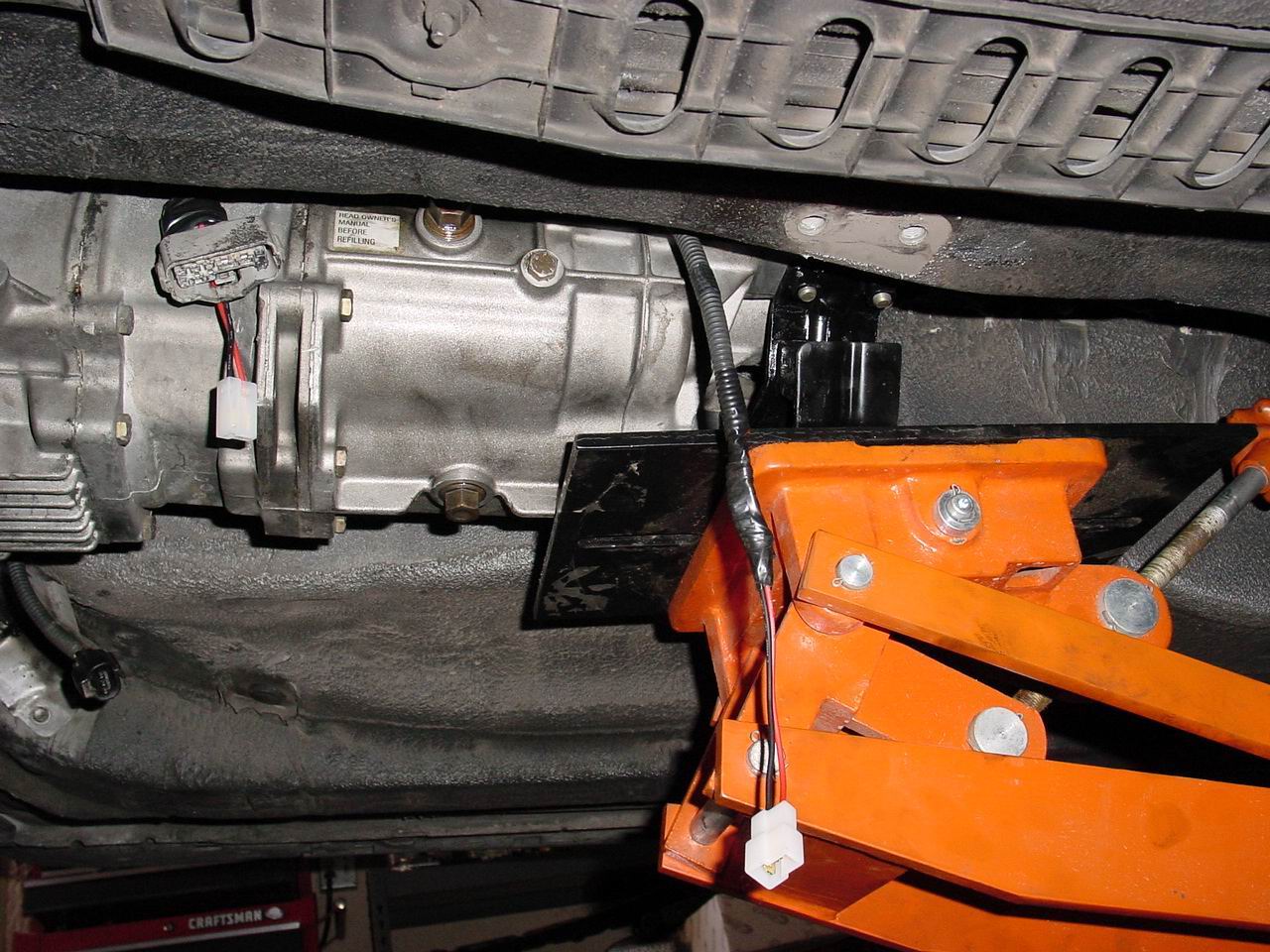

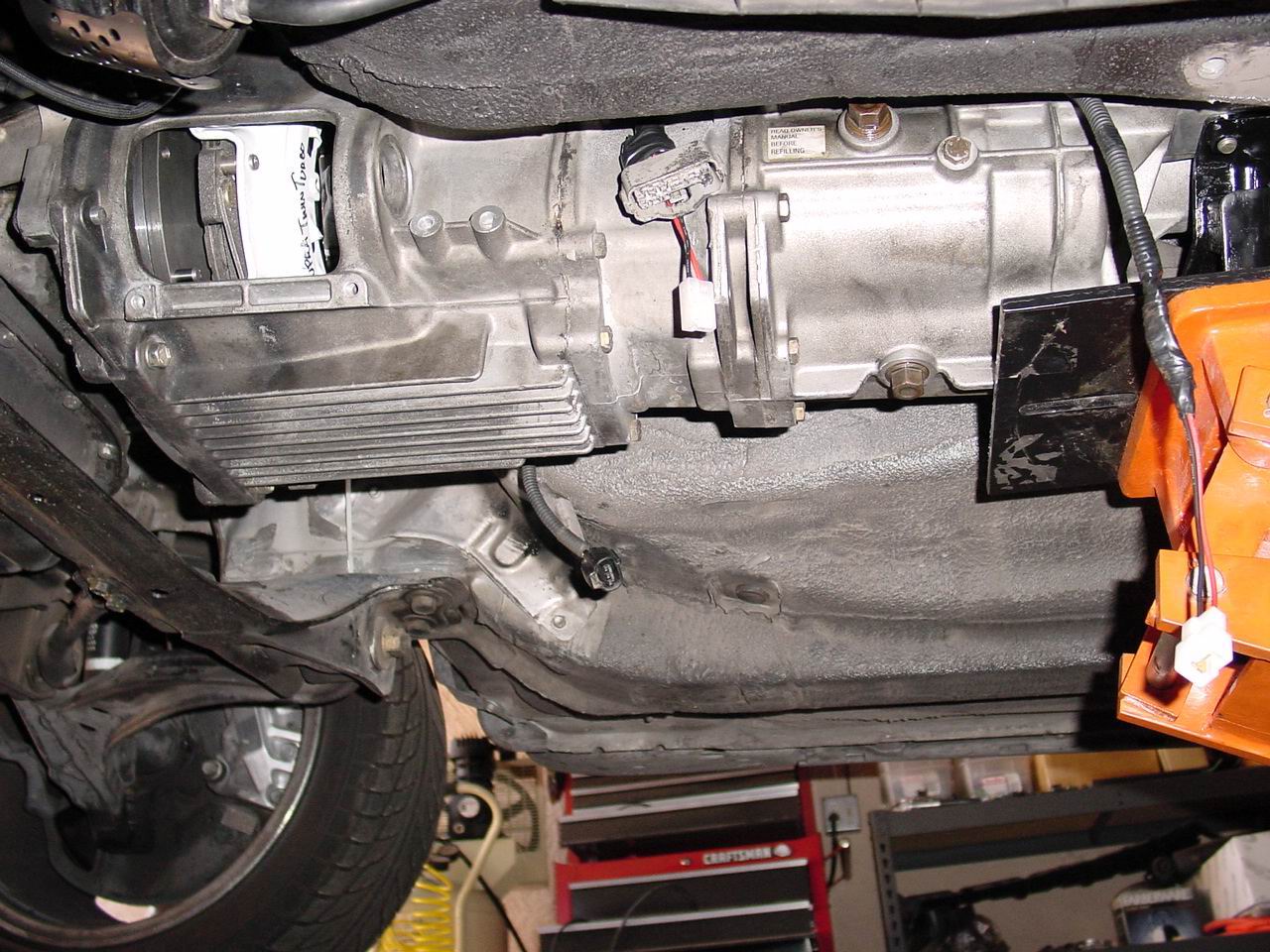

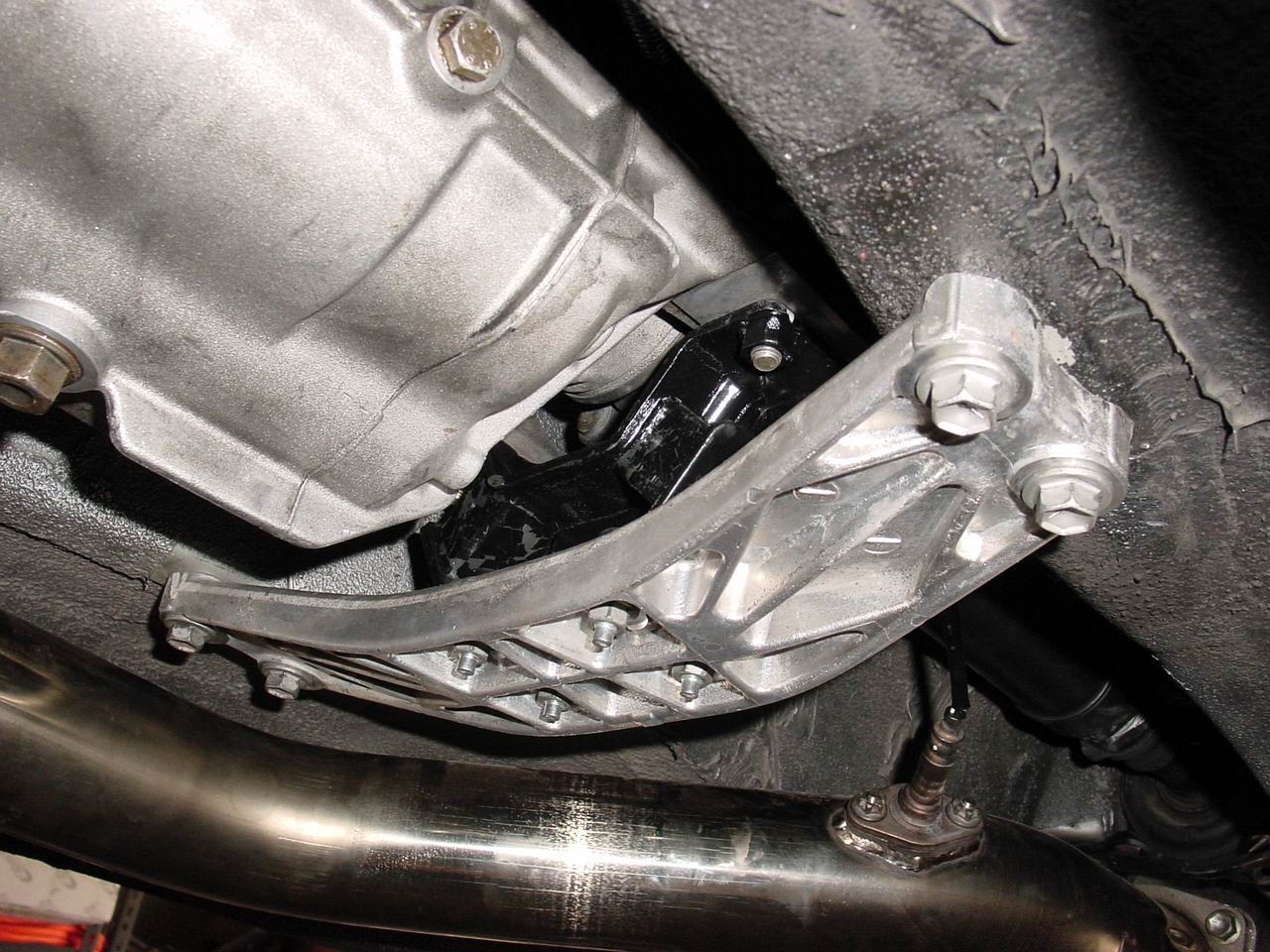

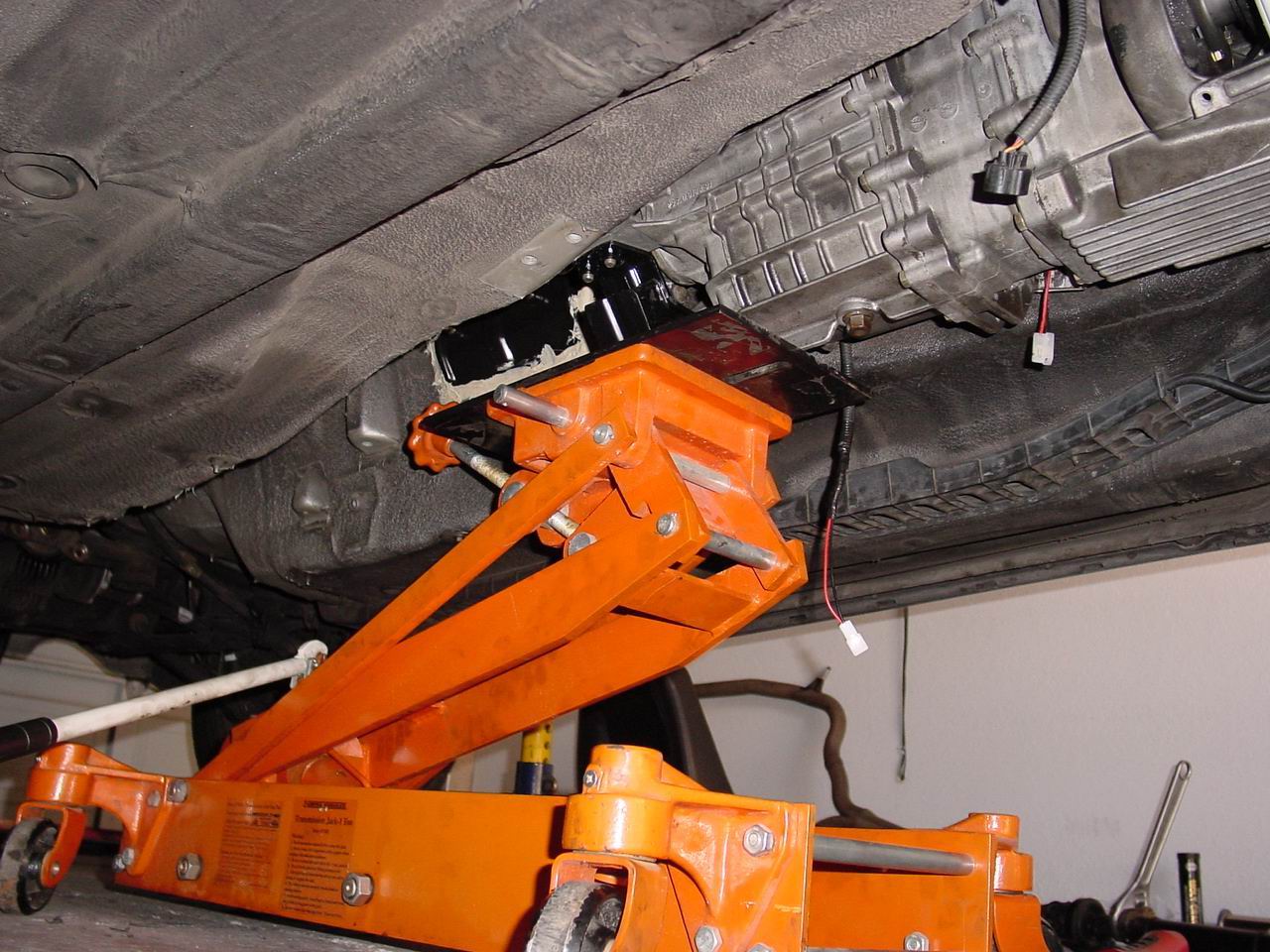

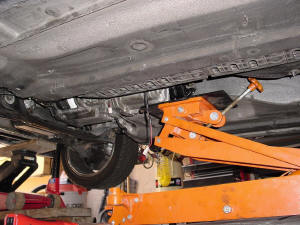

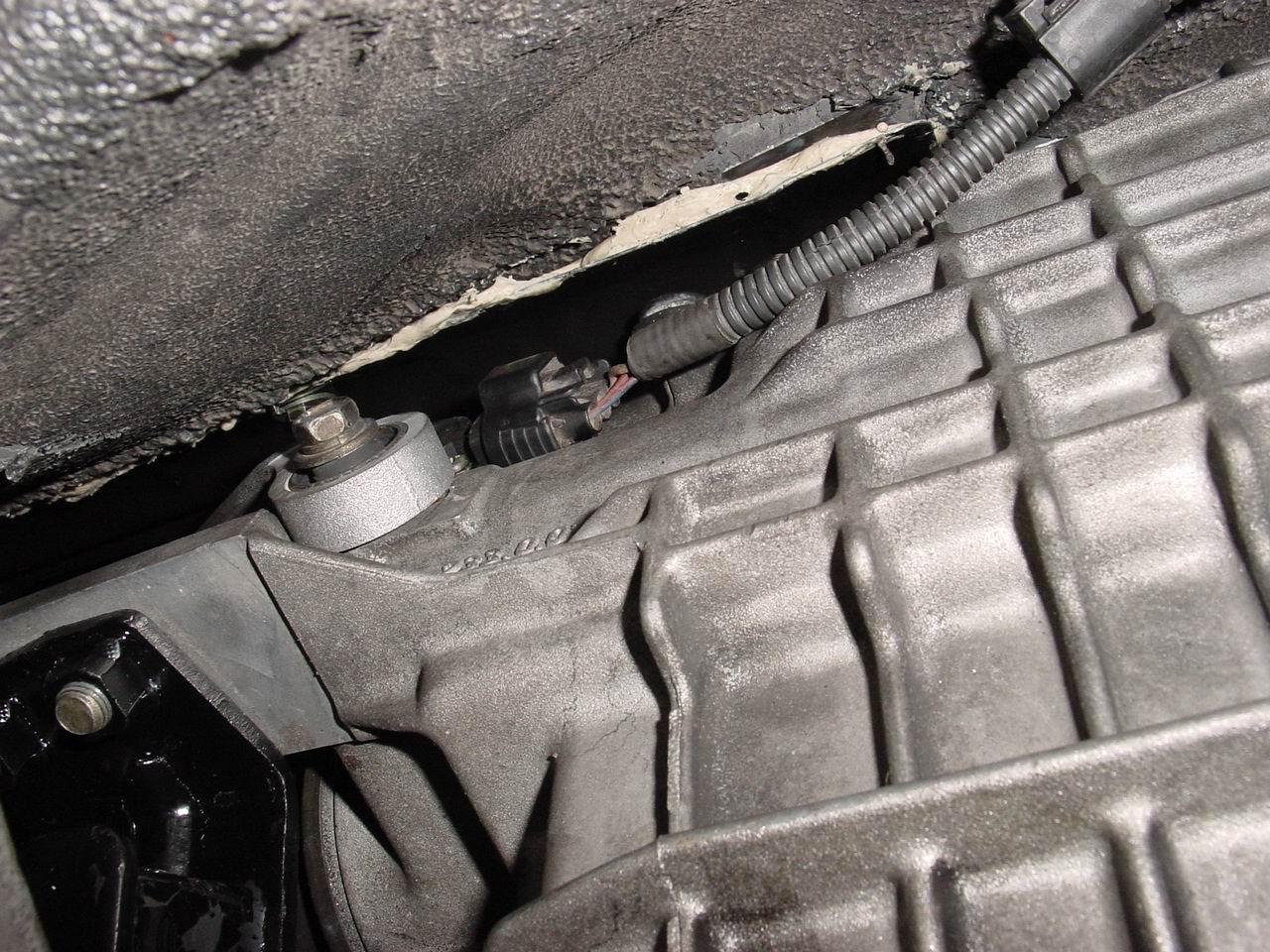

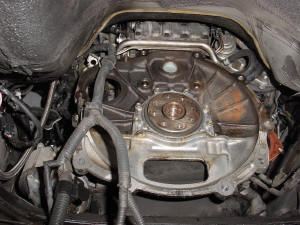

- Here are some basic pictures of my tranny install,
